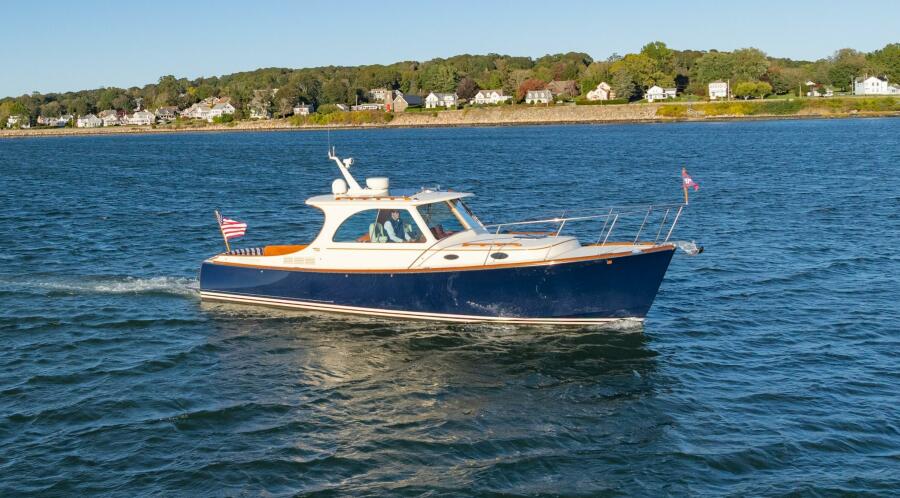

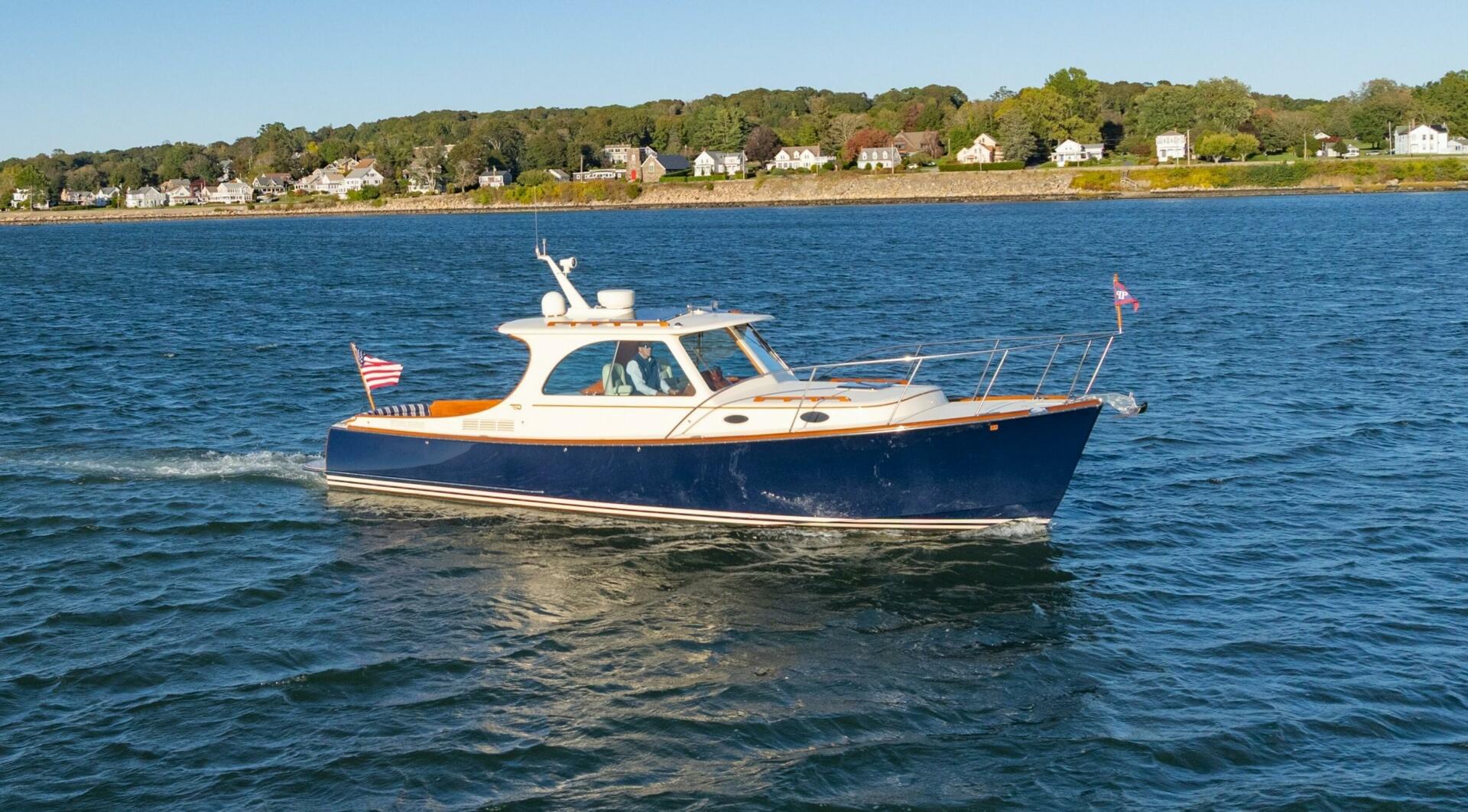

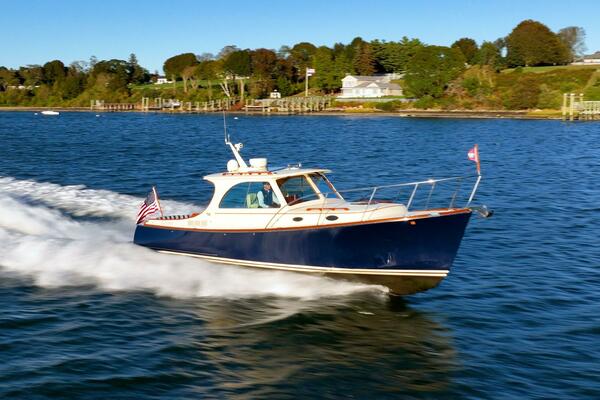

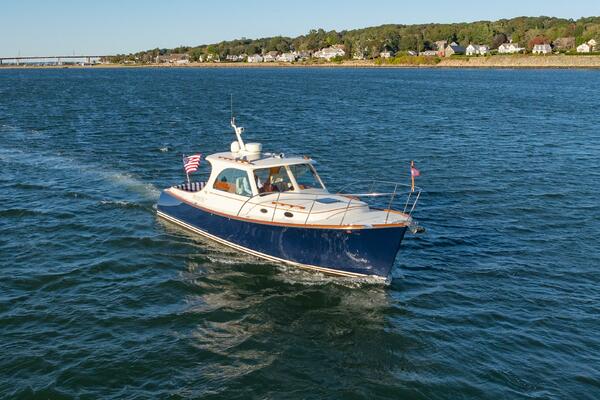

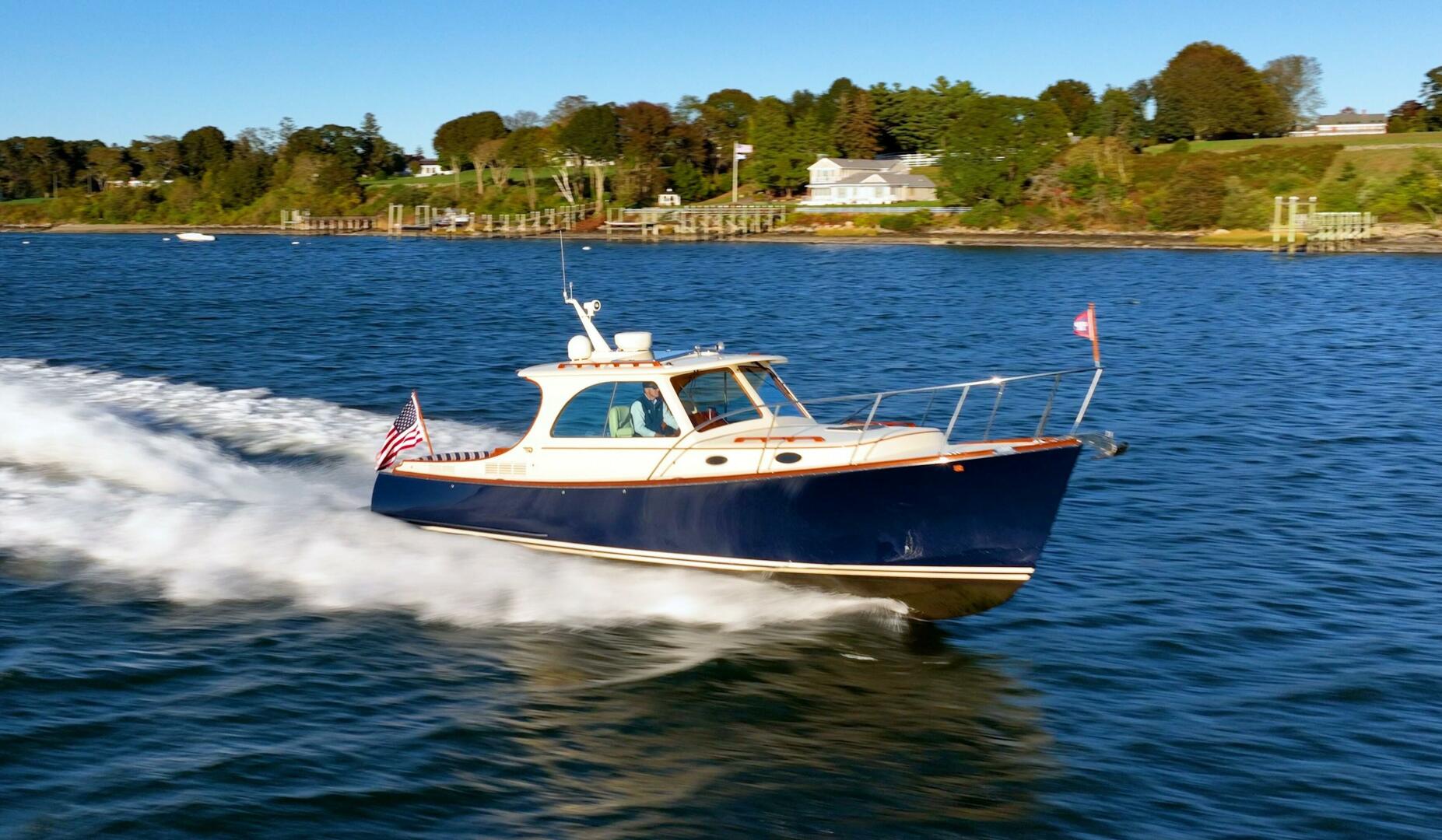

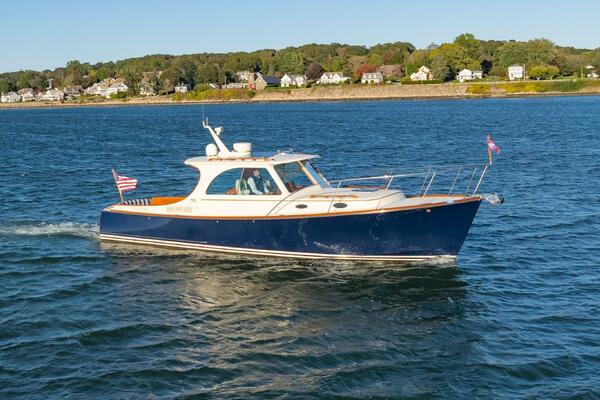

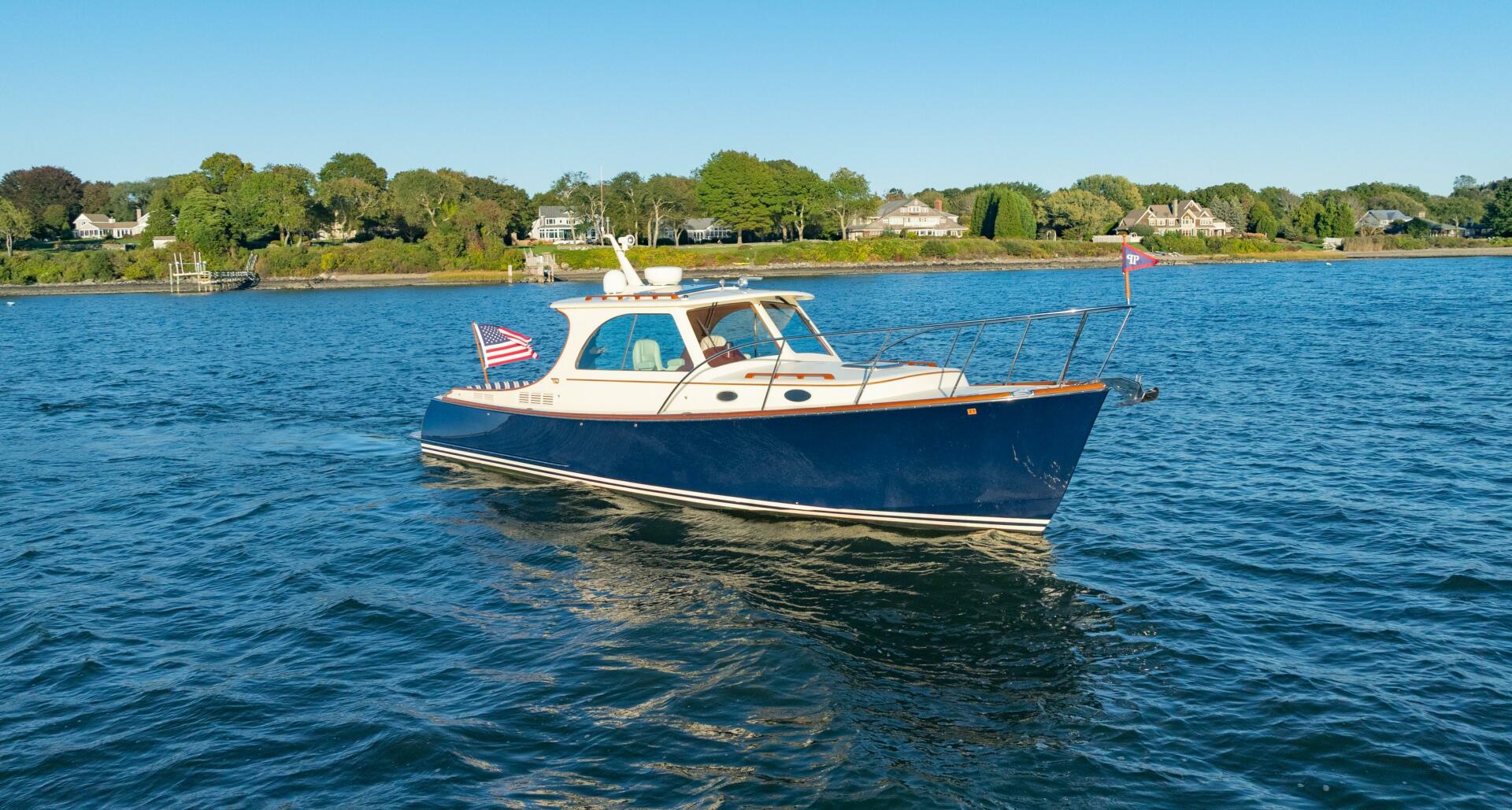

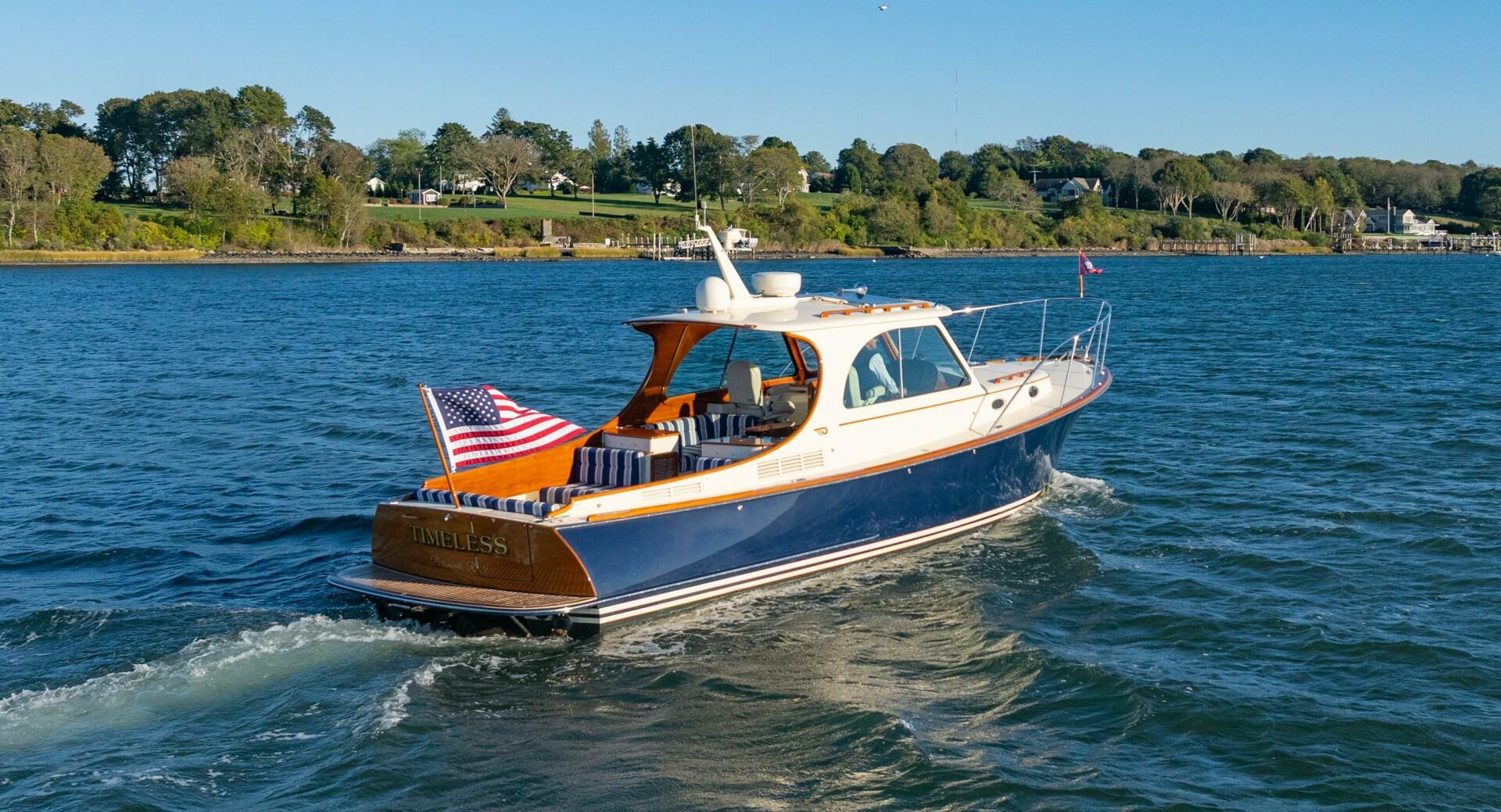

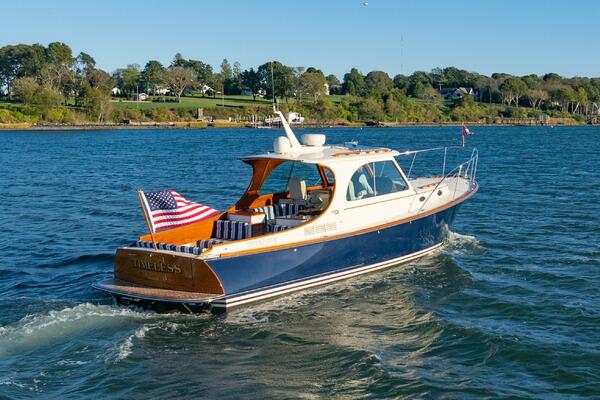

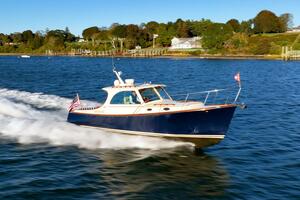

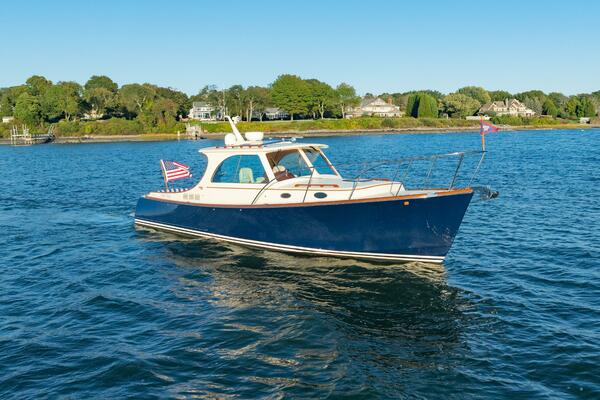

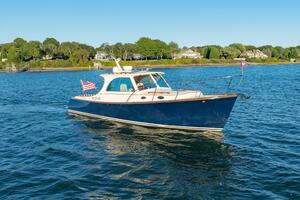

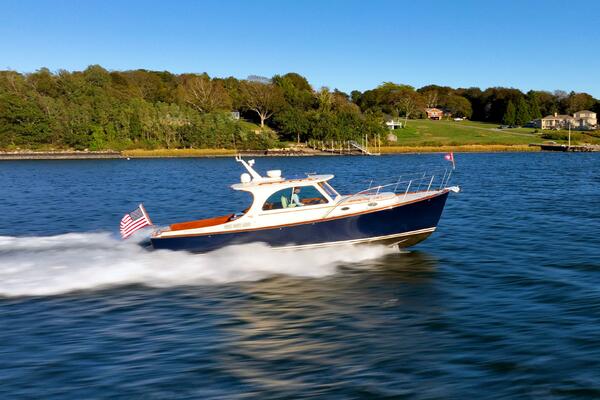

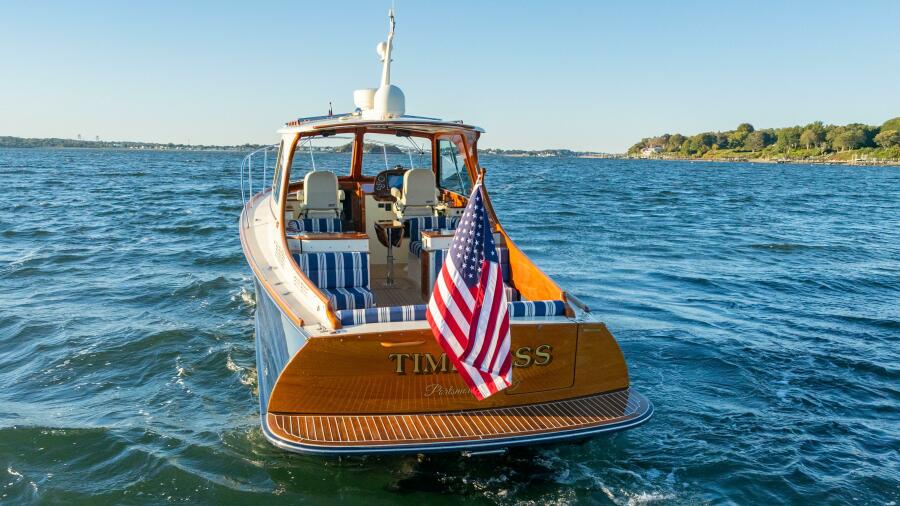

2015 Hinckley 37' _{(11.28 m)} Picnic Boat MK III

Introduction

TIMELESS (name reserved) is a heavily and tastefully optioned Hinckley Picnic Boat. She features several notable upgrades such as the Island Queen Berth, the highly desirable Volvo 435hp engine package (35kt cruise), generator, air conditioning, cockpit refrigerator, full teak package including teak decks and a varnished teak transom, underwater lighting, a satellite TV system, folding teak table for pilothouse or cockpit, carbon fiber SailShade system, brightwork covers for varnished handrails, and filler cushions for both the aft settee and a “lounge” filler cushion for entire port side in the cockpit. Every detail including custom teak decking in the head to a high-end mixing valve for the shower was thoughtfully designed. TIMELESS even has a tv mount in the pilothouse with a tv that stores in a padded bag when not in use. TIMELESS also has Jetstick II with Hoverlock and Heading Hold to make driving even more pleasurable. This is an outstanding value for an a “like new” new Picnic Boat with the current PB37 engine package.

TIMELESS (name reserved) will be sure to turn heads in every port and harbor she graces.

KEY FEATURES:

• Upgraded Volvo D6-435hp engines for exhilarating performance

• Generator and air conditioning

• Custom release marine pilothouse/cockpit table

• Stunning varnished teak transom and teak clad swim platform

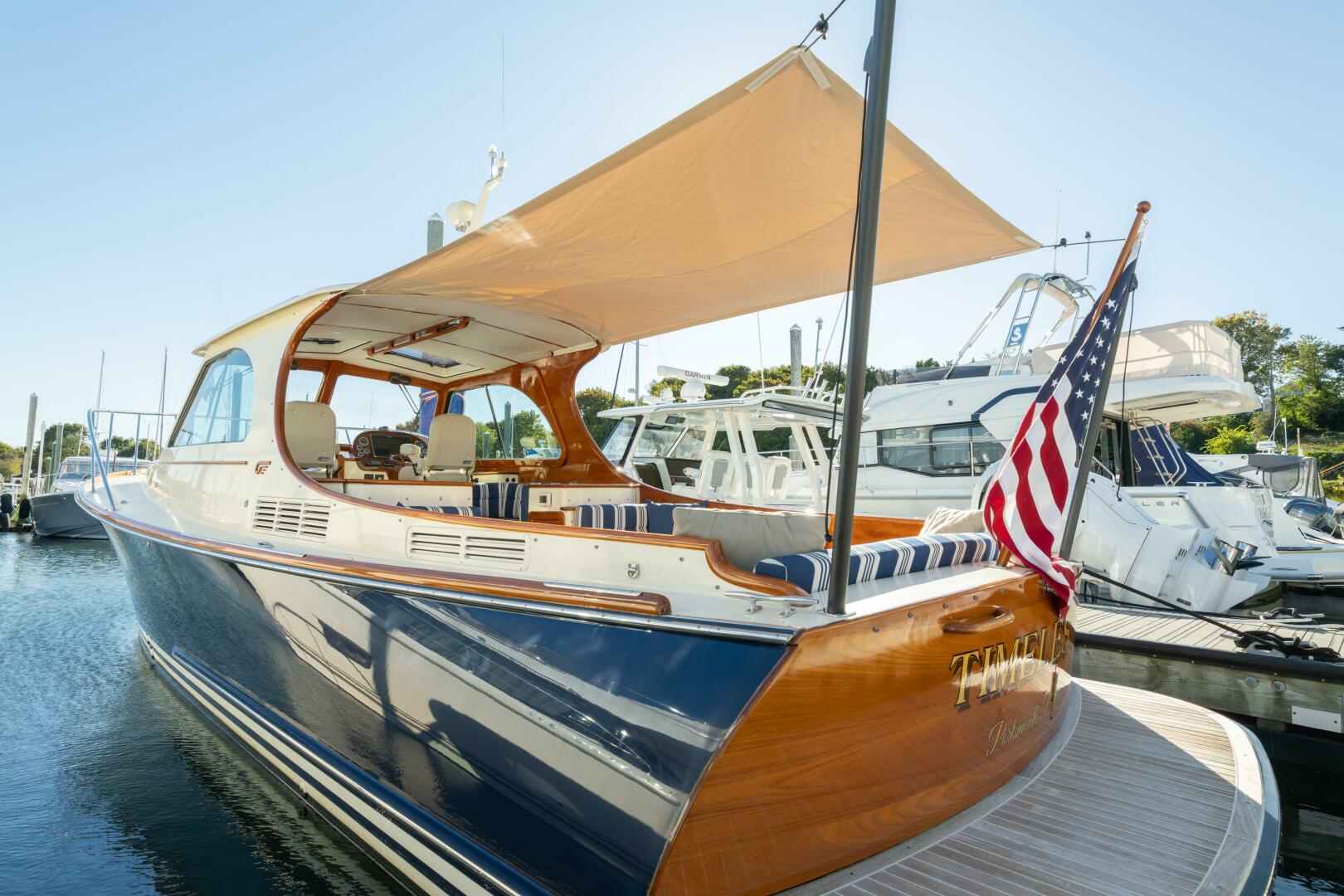

• Carbon Fiber SailShade system for aft cockpit

• Underwater blue/white lights

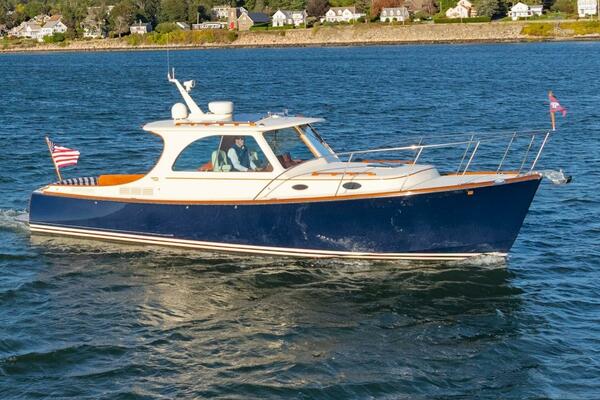

Deck and Hull

Construction of the hull is Hinckley DualGuard® Composite Construction Kevlar E-glass hybrid outer skin. Aircraft grade end-grain balsa below the waterline. Carbon-fiber inner skin. SCRIMP® laminated with vinylester resin. Deck and cockpit are E-glass with balsa and closed- cell foam core, SCRIMPED with vinylester resin.

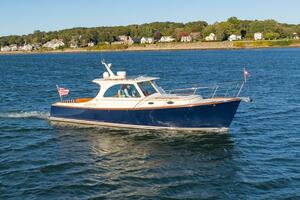

• Flag Blue Awlgrip hull

• Light Cream gelcoat cabin house and painted to match non-skid decks

• Light Cream double bootstripe

• Black Pettit Vivid bottom paint

• Marelon ball-valve seacocks with thru-hulls below water line and Marelon thru-hulls above the waterline

• Stainless steel half round on fiberglass molded rub rail

Heavy-duty fiberglass swim platform has a custom-optioned teak deck with white caulk that improves the functionality and upgrades the overall look with stainless steel bracket and half round.

• Stainless steel telescoping 3-step folding swim ladder that stores under platform

• Custom optioned teak deck package with white caulk that clads the top of the swim platform.

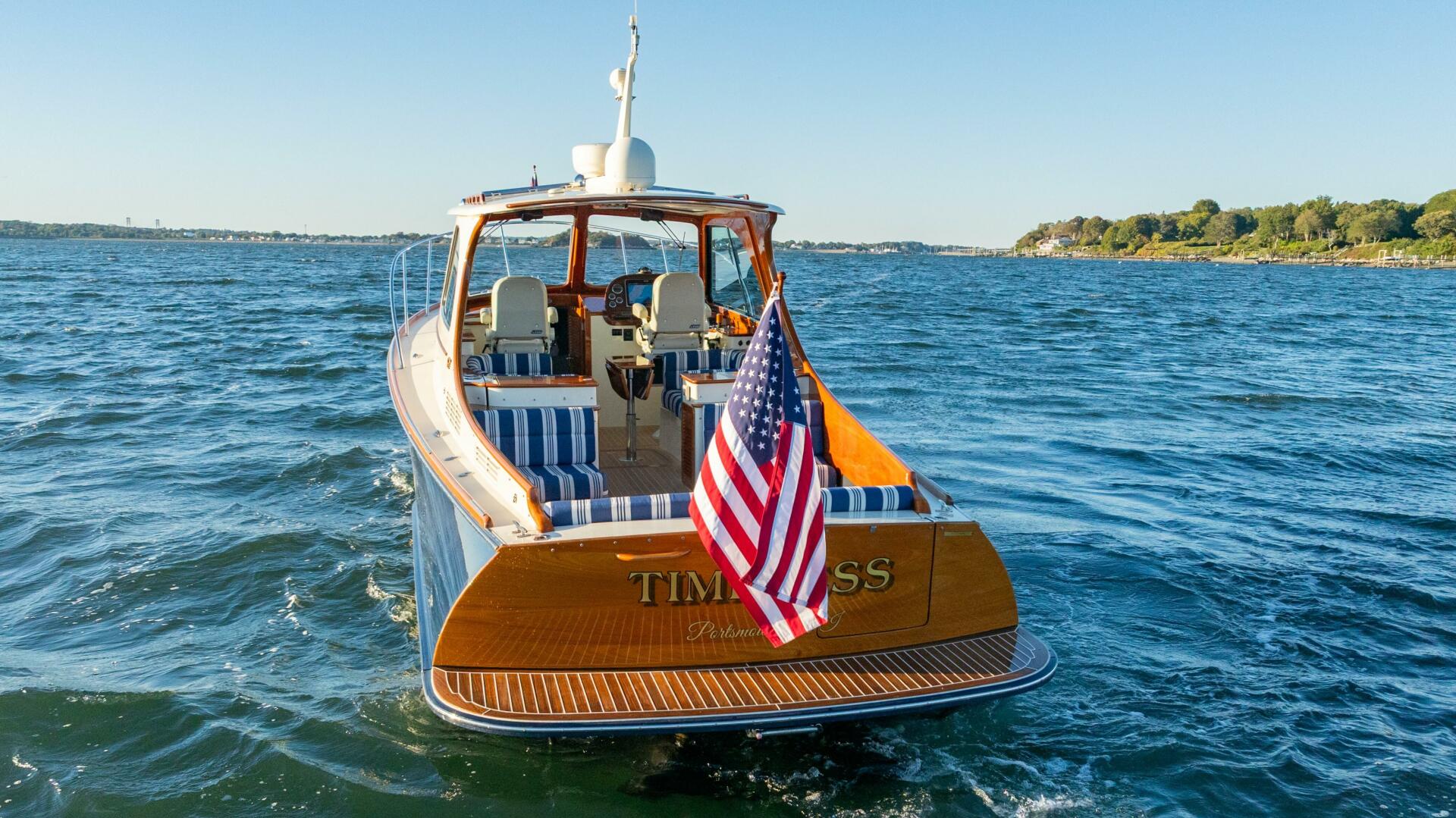

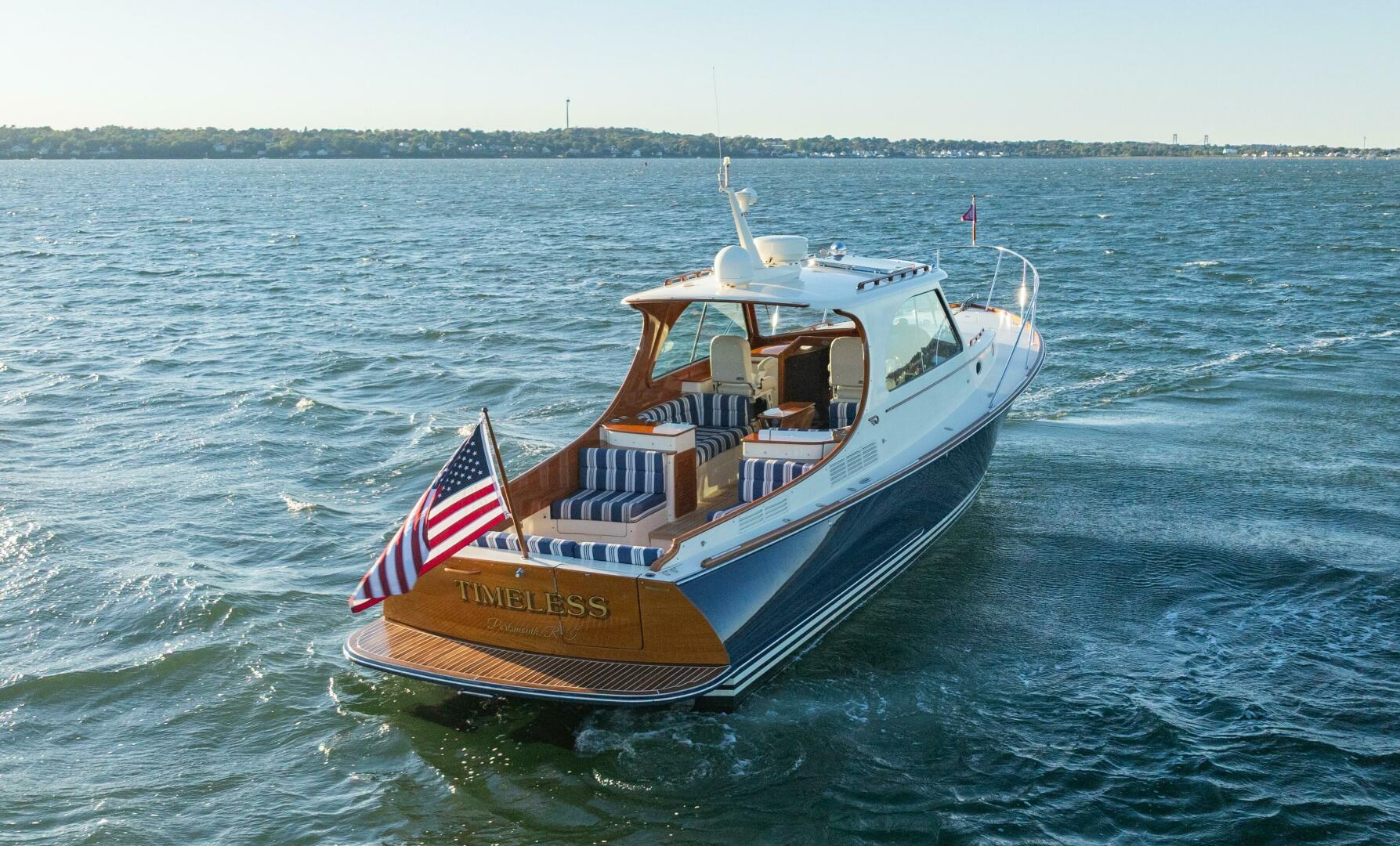

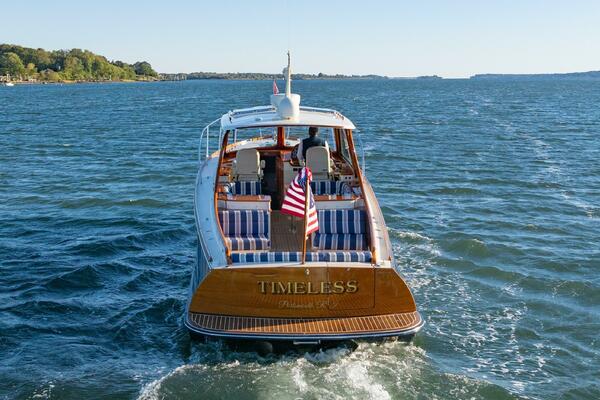

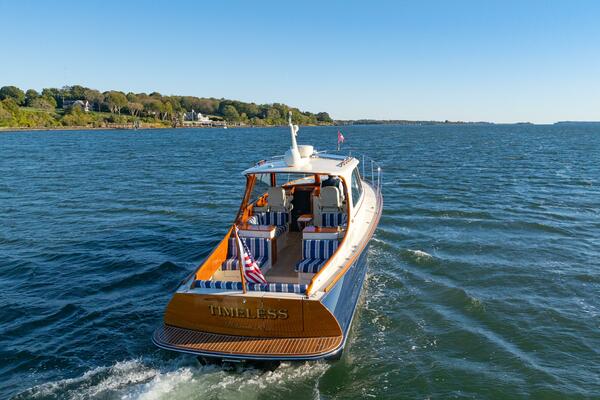

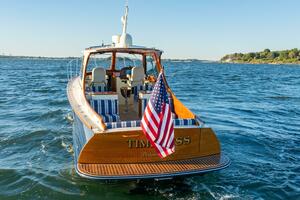

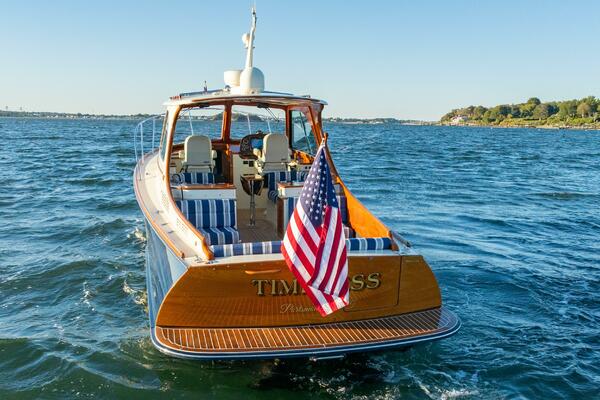

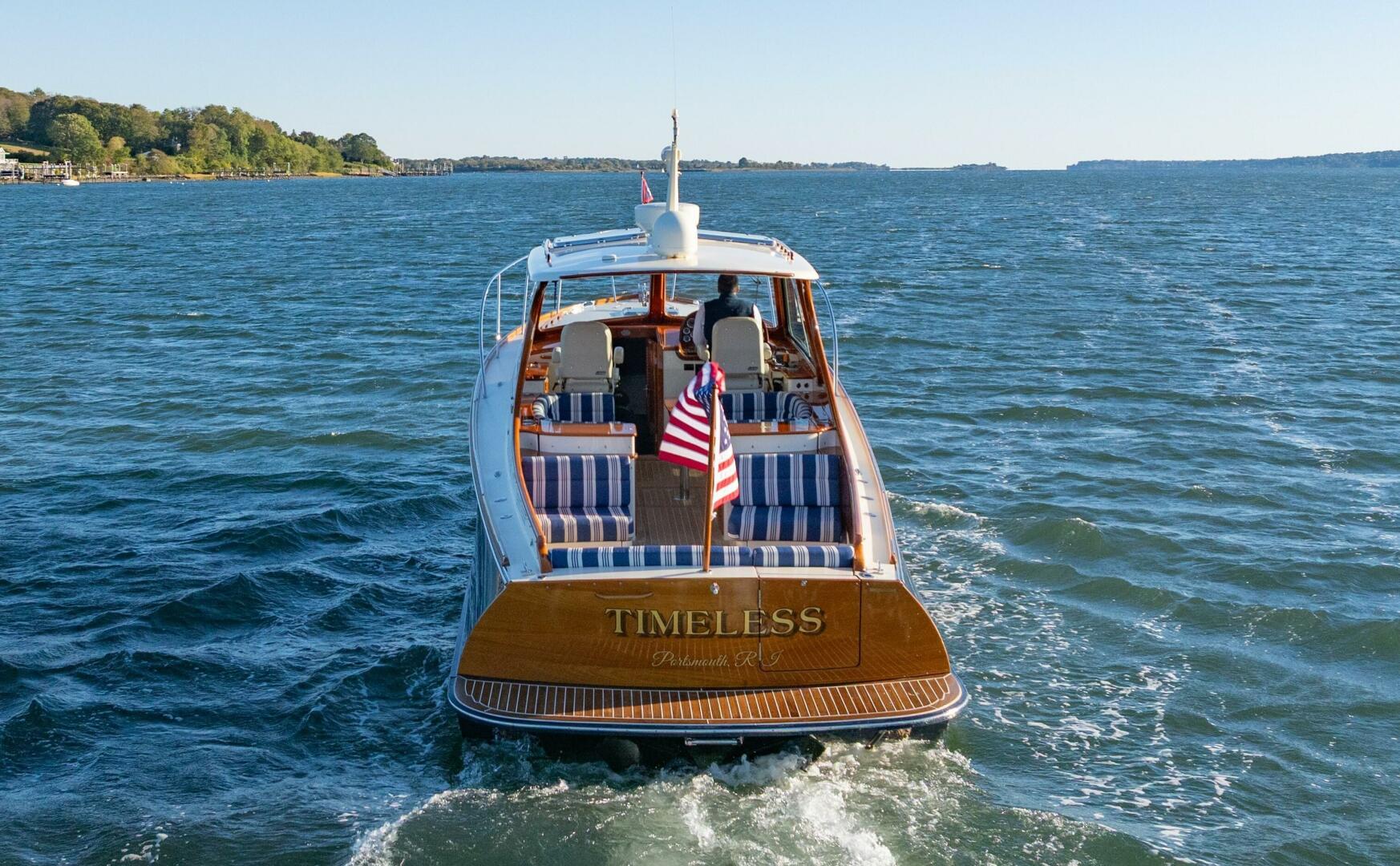

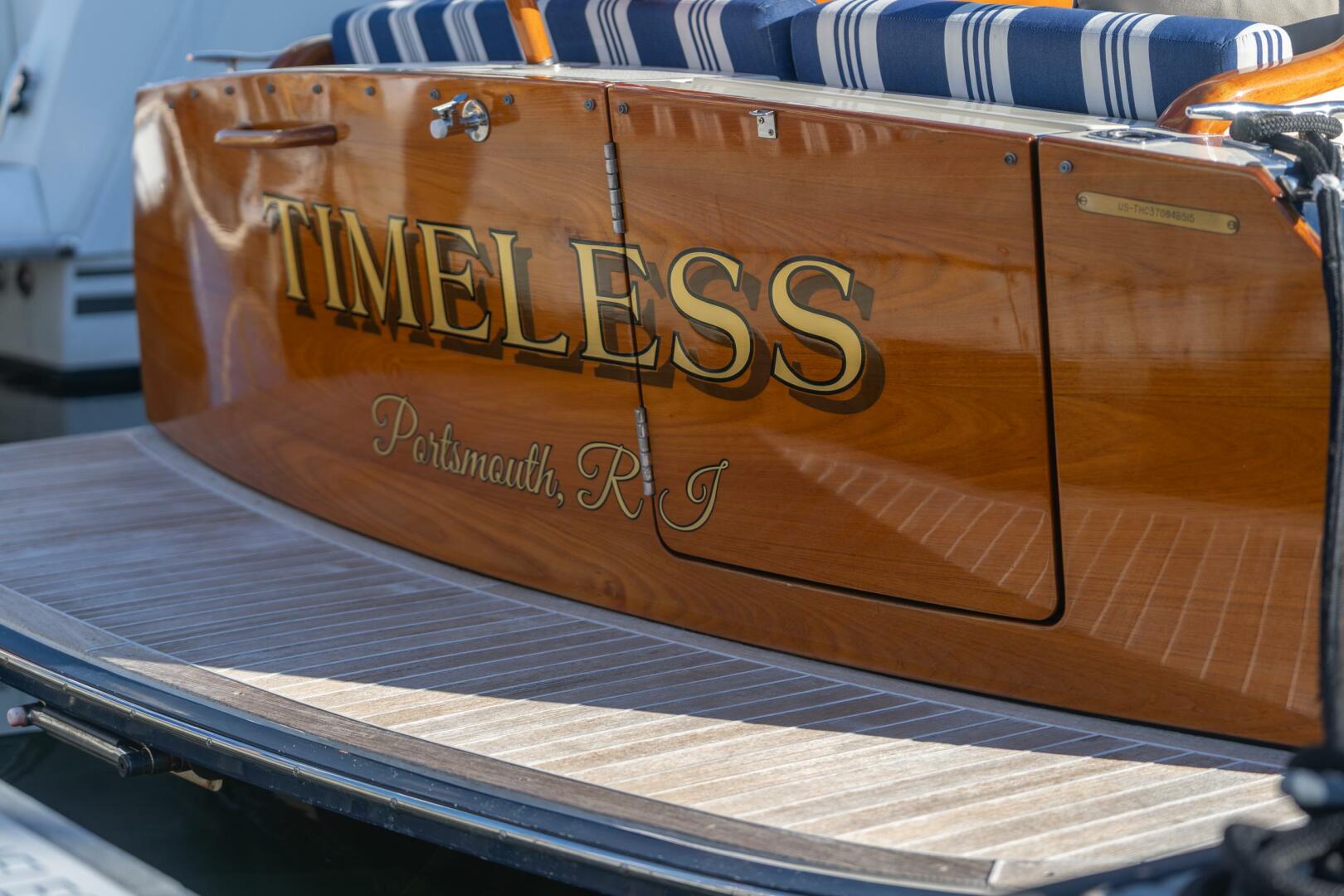

• Custom varnished teak transom

• Custom blue/white underwater lights under swim platform

Deck Features:

• Flush foredeck anchor locker with hinged hatch and fold-out anchor roller. Hinckley designed polished SS folding anchor roller with 12-volt windlass. Windlass controls at helm and handheld wireless remote. Polished SS Delta anchor with 25’ SS chain and 150’ rode

• Rounded, tapered, varnished teak toe rail with Hinckley profile

• Varnished teak eyebrow molding around cabin top

• Varnished teak handrails on house top, cabin and aft end of pilothouse

• 4x elliptical ports on house sides, opening port in the head

• Hinckley pilothouse mast with radome painted to match deck

• Large opening side windows in pilothouse

• 2x Stainless Steel electric opening hatches in the Pilothouse with powered Ocean Air Sky Screens

• Custom Hinckley 316L stainless steel bow chocks

• Bow, stern and 316L stainless steel mooring cleats - mid-rail easily reached from cockpit with pop-up mid ship cleats

• Fender padeyes with toe rail chafe strips

• Single bay varnished teak handrail mounted at port dash

• Varnished full teak package including dash, pilothouse liners and cockpit coamings

• Teak decks in pilothouse and cockpit with desirable white caulk

• Custom fresh water wash down spigot in anchor well

• Exterior handrail covers

• Custom stainless bow rail

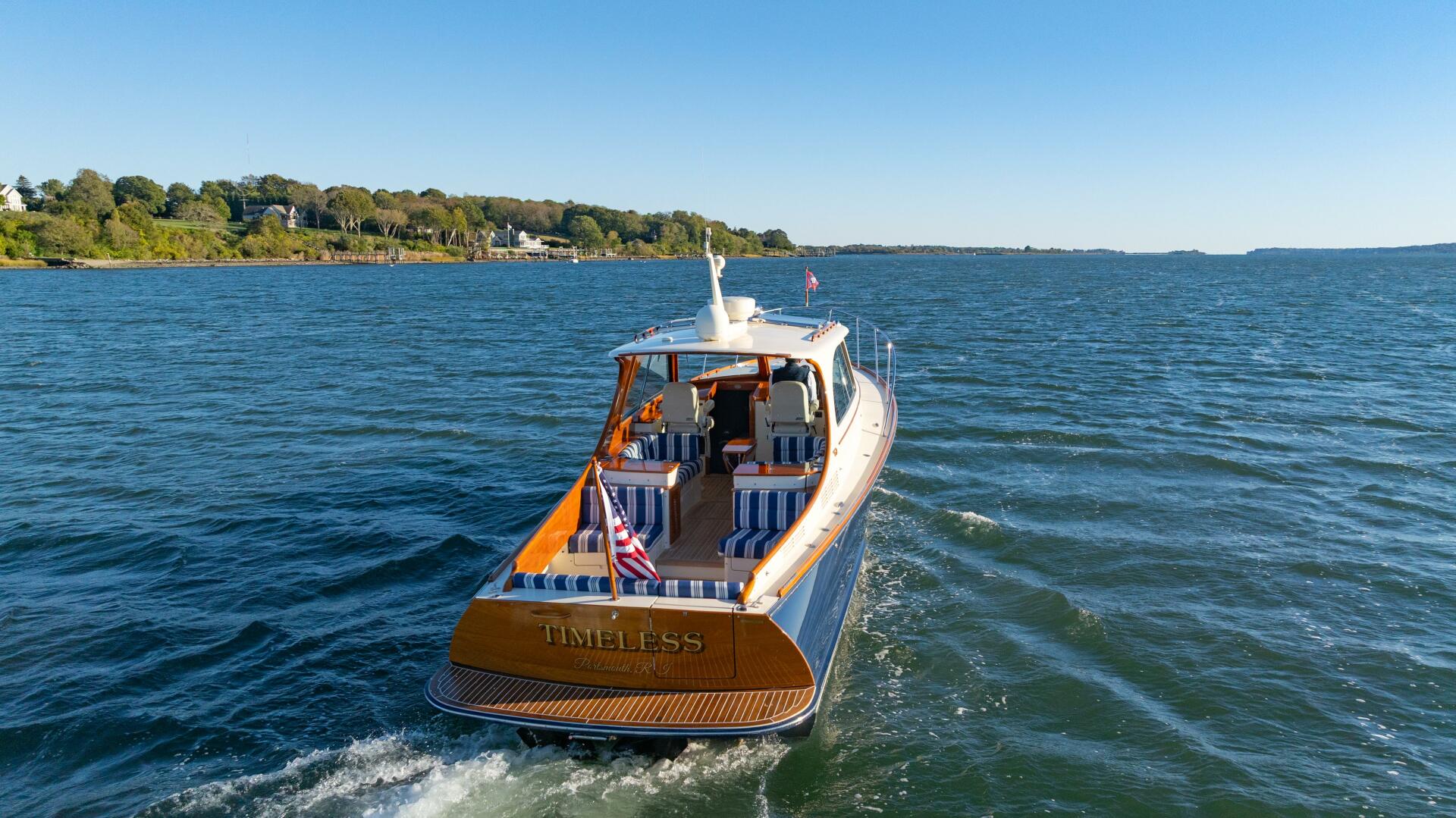

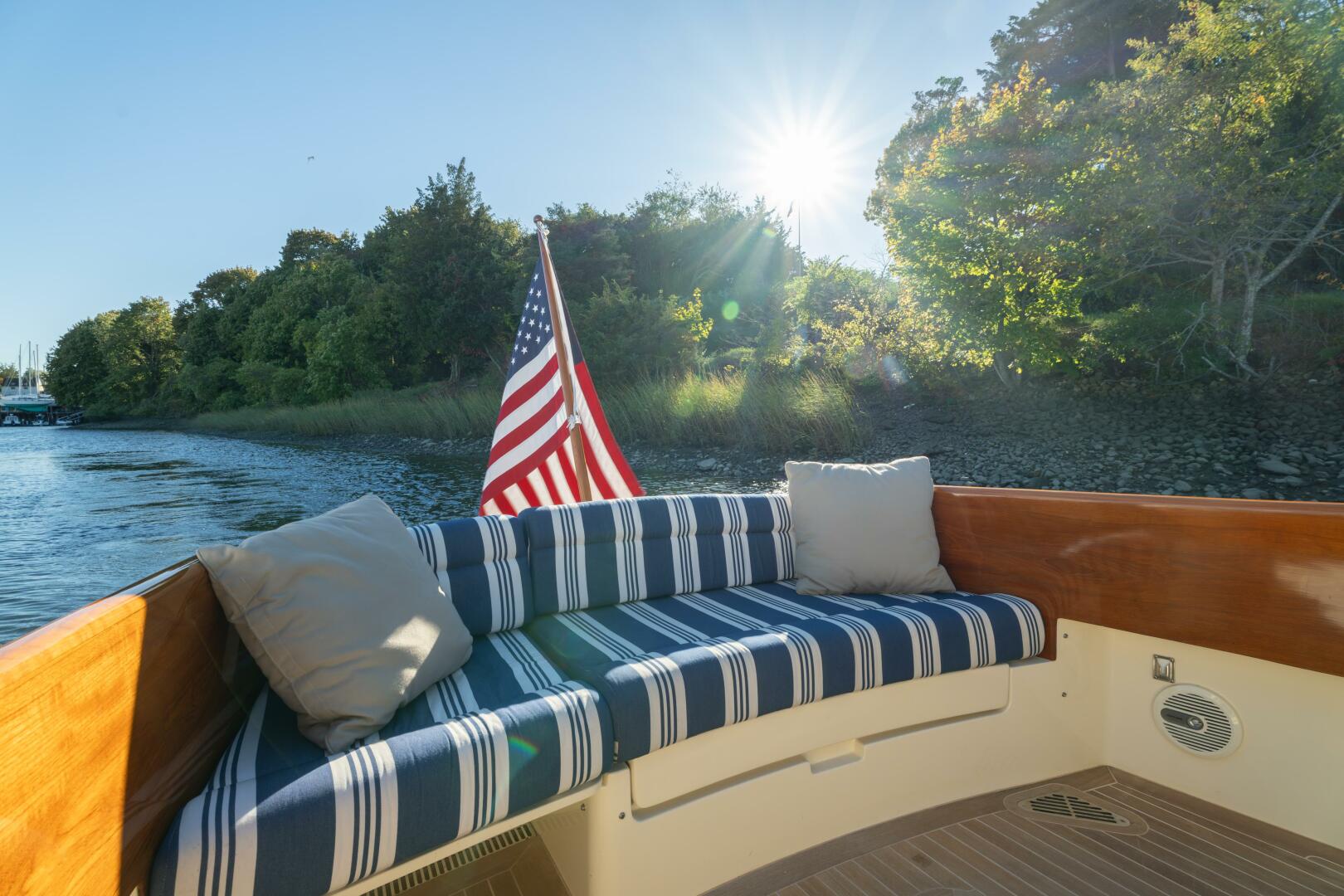

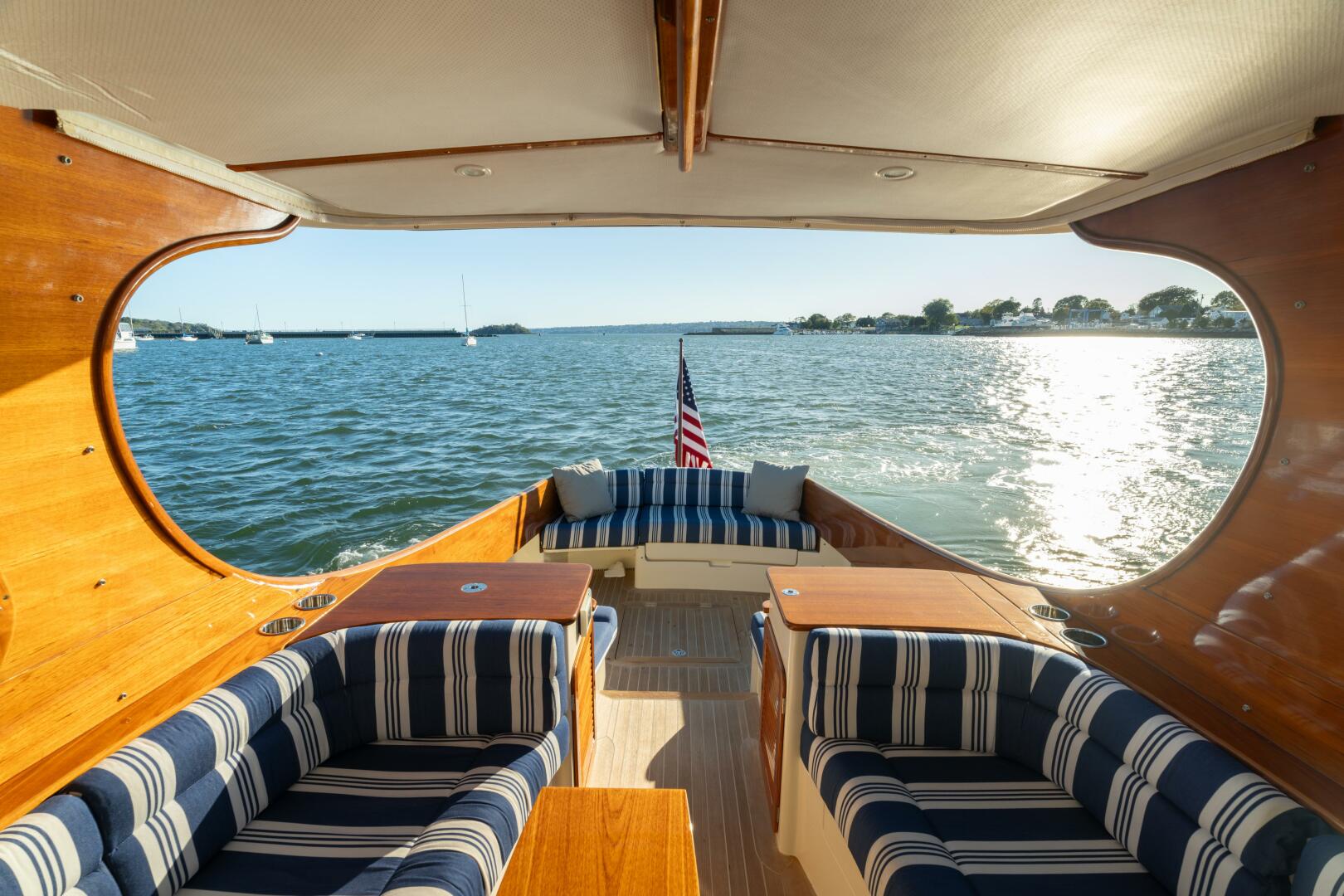

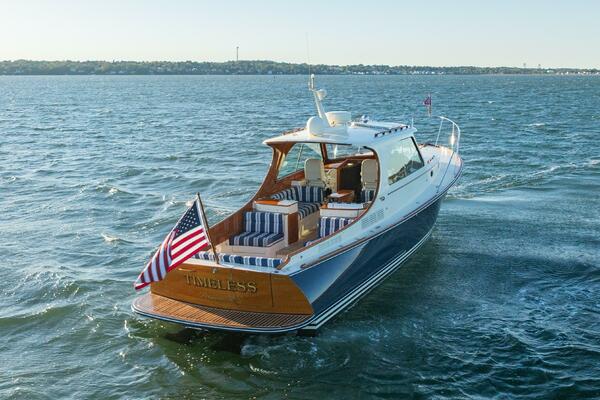

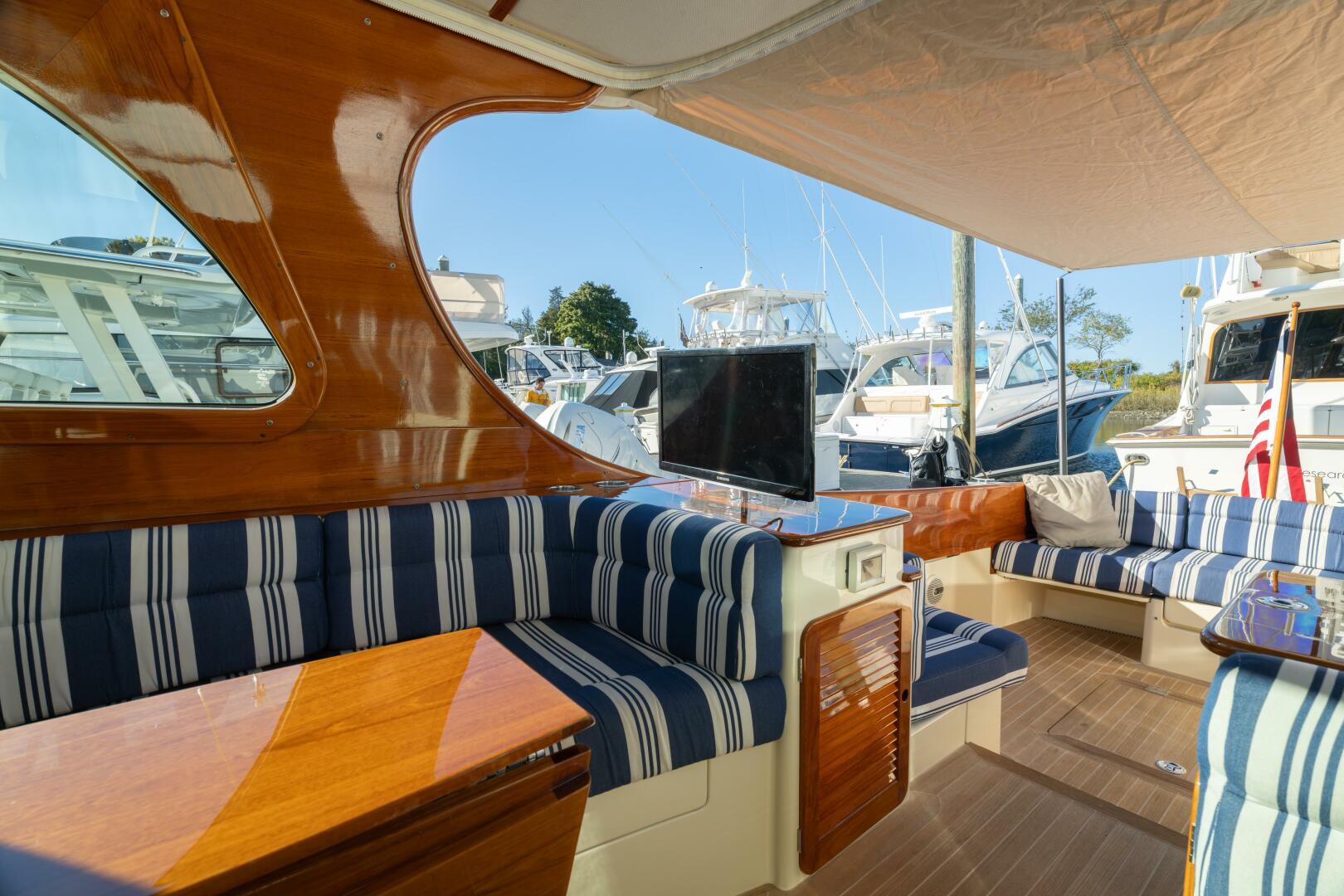

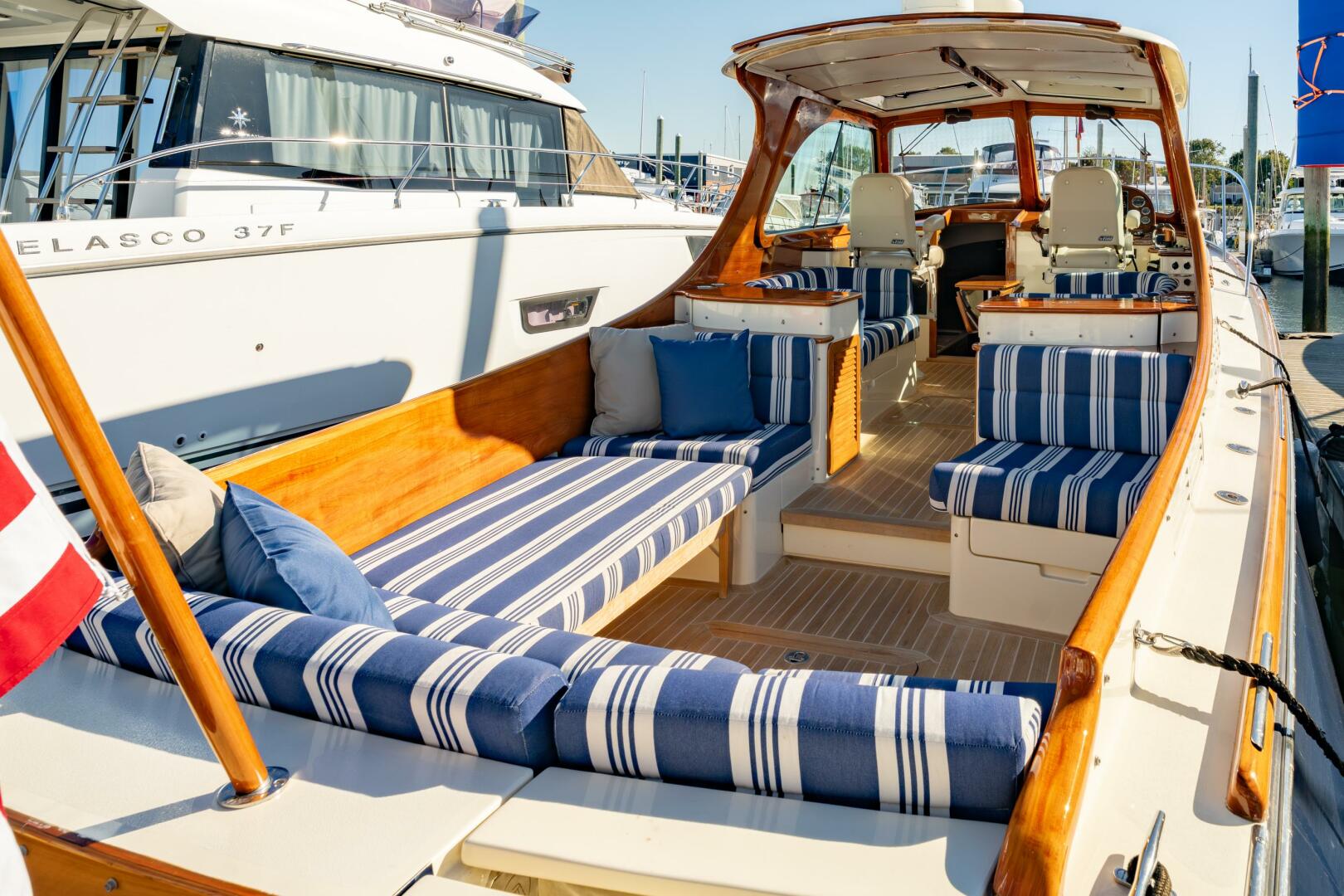

Cockpit

The Cockpit features optional teak decks with white caulk and gloss varnished teak coamings. Ample cushioned seating at the transom, stern door filler with matching cushion, and aft facing seats at the forward end of the cockpit with storage below. There is also an optional filler cushion for full port side lounging and a stainless table base to move the cockpit table aft for alfresco dining.

More cockpit features:

• Teak decks in cockpit area with white caulk

• Gloss vanished teak cockpit coaming

• Starboard transom door from swim platform

• Optional receiver installed in port cockpit area for folding table

• Swim platform clad in custom optioned fore/aft teak deck package with white caulk

• Optional 8” deep insulated and drained cooler in port amenity with hinged lid

• Optional refrigerator installed in starboard amenity

• Cockpit cushions in Ralph Lauren Navy Patio Stripe

• Courtesy lights under side decks port and starboard

• Cockpit/pilothouse lockers with varnished louvered teak doors

• Cockpit shower with mixing valve at stern seat

• Stamoid cockpit mooring cover

• 2x speakers in cockpit with dedicated amplifier and volume control

• 2x stainless steel holders mounted on the port and starboard side decks

• A stainless base on the varnished settee back for a stainless TV mount incorporated on back of the TV (TV stores in a padded bag)

• 2x Rupp rod holders mounted on port under gunwales

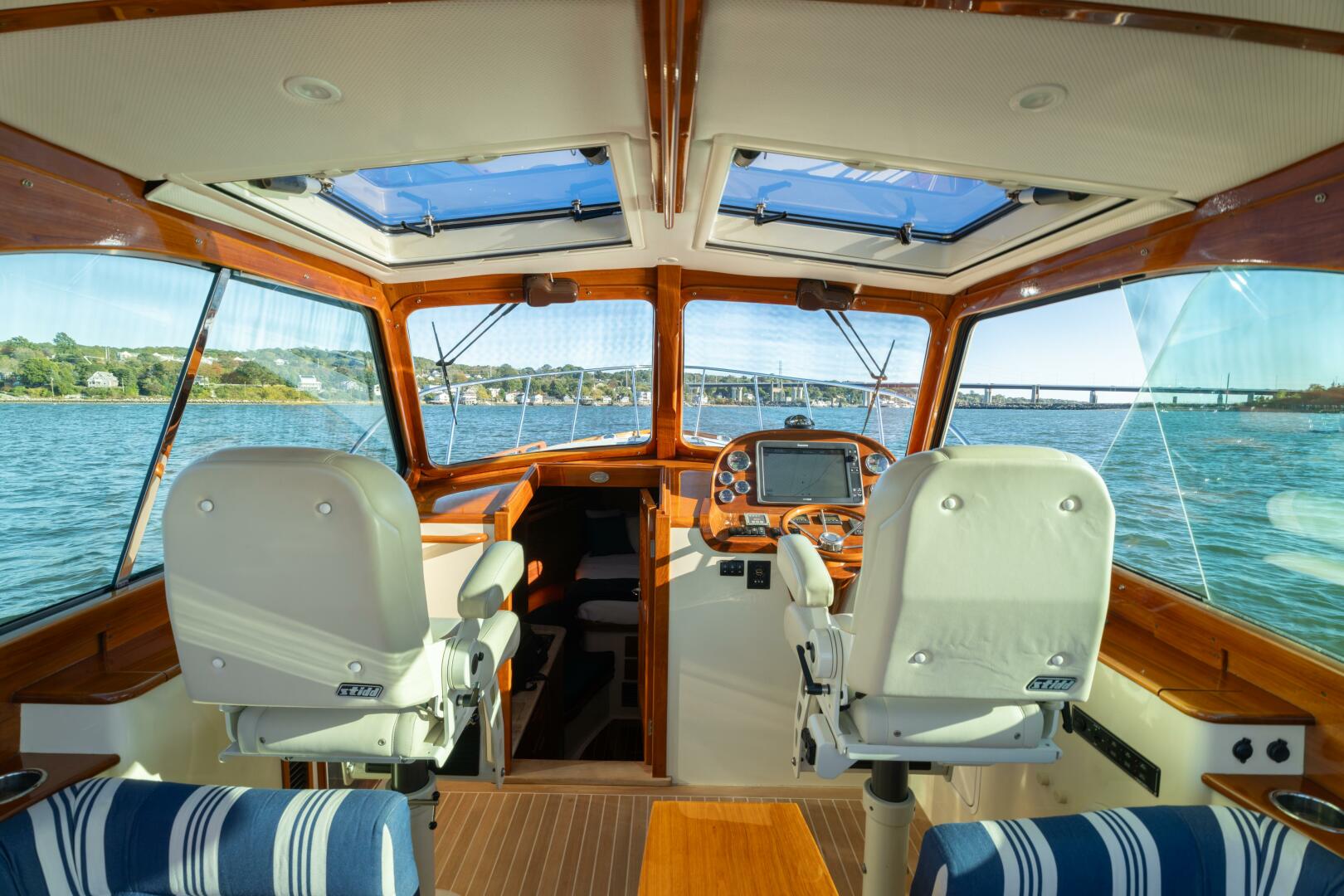

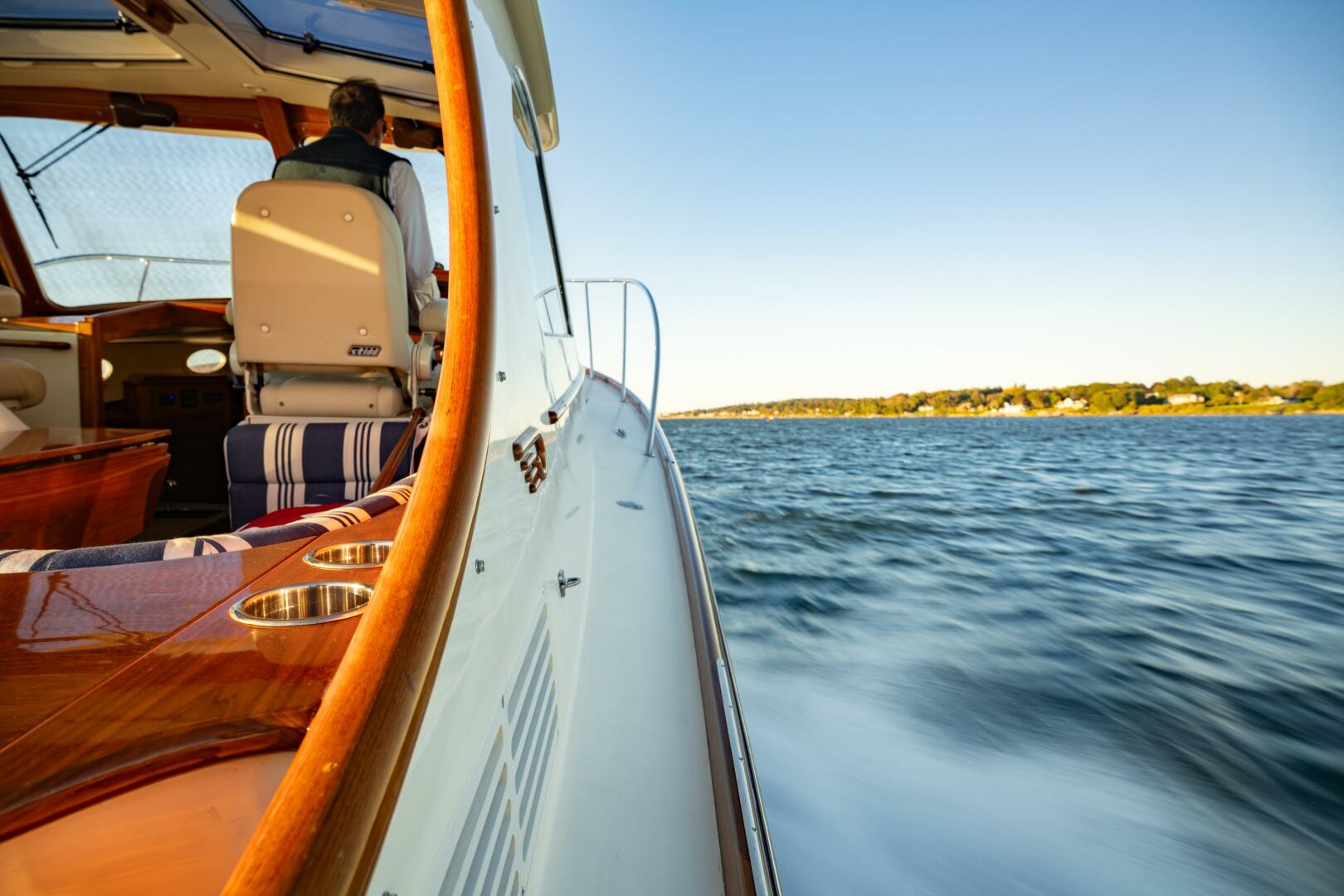

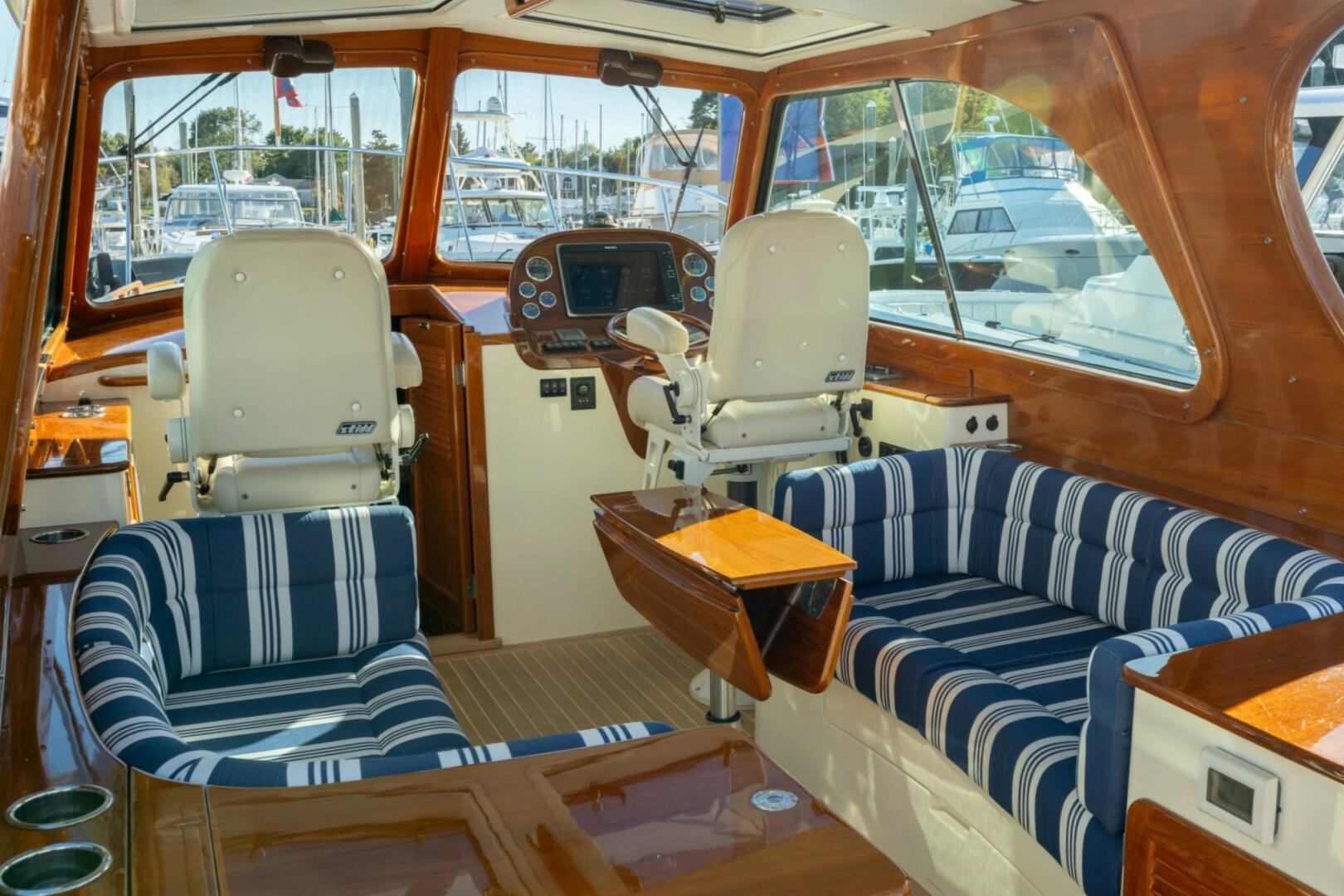

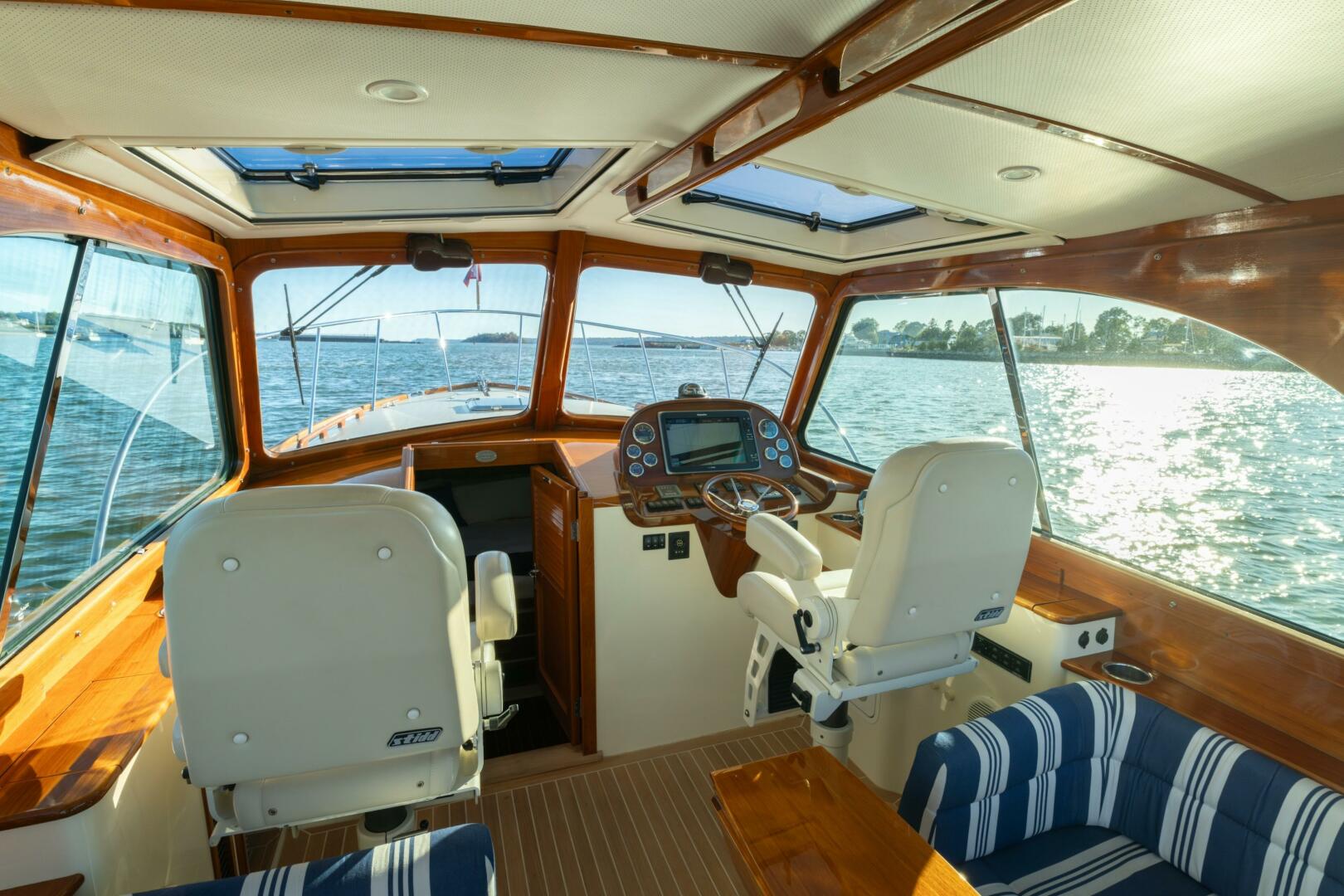

Pilothouse

The pilothouse is fully air conditioned with Ralph Lauren Navy Patio Stripe upholstery at port and starboard. The opposing settes have a custom curved section forward for comfortable lounging and a secure spot underway. There are also optional teak decks with white caulk, full length overhead teak hand rail and optional (removable) folding table.

• Varnished teak pilothouse liners and dash

• Optional teak decks with white caulk throughout

• Optional curved settee sections at forward ends of opposing settees for added comfort and lounging

• 4x Pilothouse windows with green tint include: 2x power sliding side windows and 2x fixed, forward with heavy duty, self-parking, intermittent windshield wipers and fresh water washers

• Insulated white overhead has two oversized hatches with Ocean Air Sky screens/shades

• Optional powered Stidd helm seat with Luxor Leather Soft Touch Plus in Vellum. Both helmsman and navigator seats have integral folding foot rests

• Optional refrigerator installed in starboard amenity between cockpit and pilothouse

• 2x 10,000 BTU air conditioning/reverse cycle heat units in pilothouse with separate controls for port and starboard

• Additional illumination is by 4x overhead low-voltage halogen lights

• Storage lockers under pilothouse settees

• 10x Cup holders, three at each settee and two at each helm location

• Glove box/storage at port and starboard helm shelves

• Varnished teak locking companionway door, hatch as fiddle for use when opened halfway

• Varnished teak handrail on centerline

• Stamoid 3-piece drop curtains with Eisenglass windows

• Custom teak dining table with base

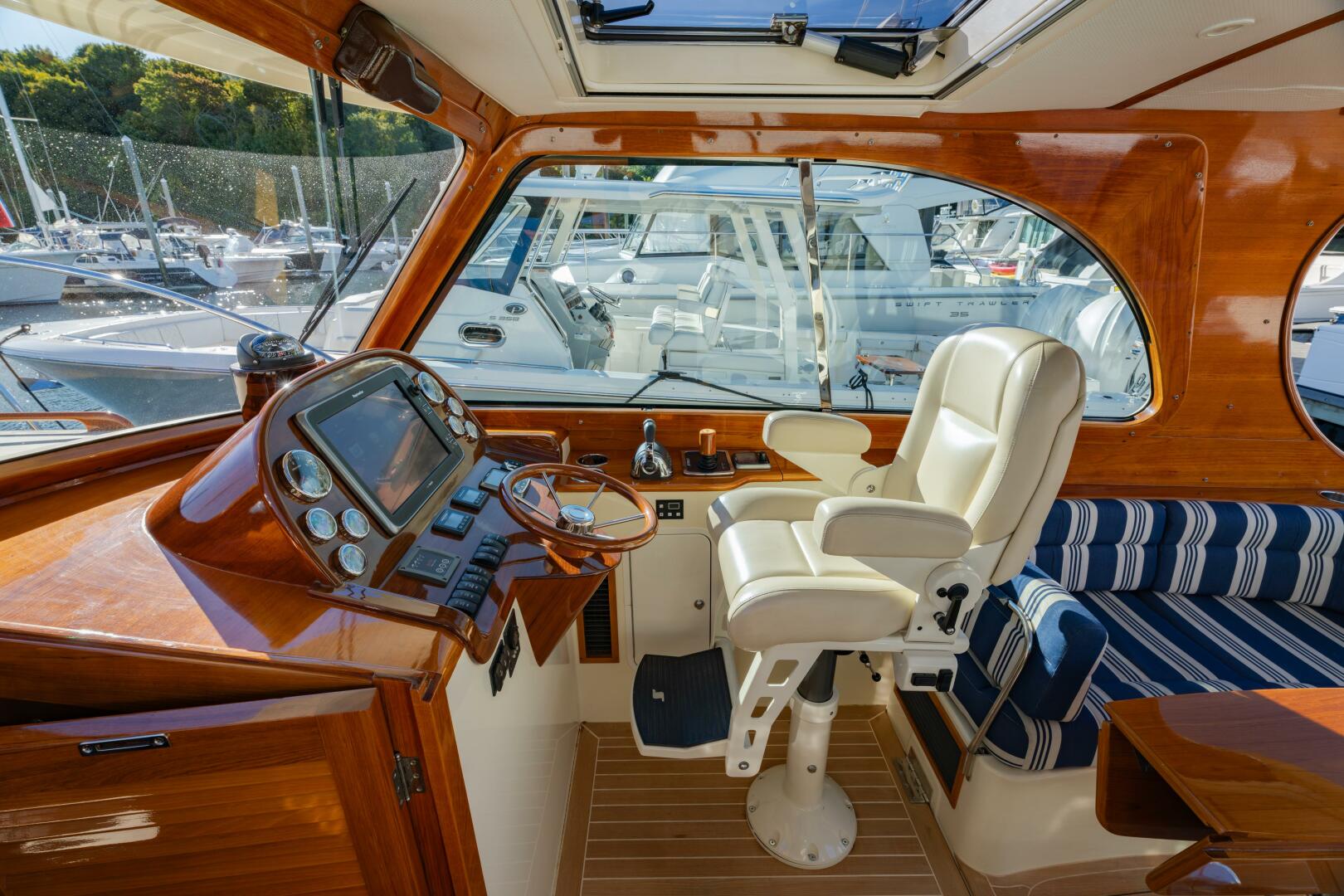

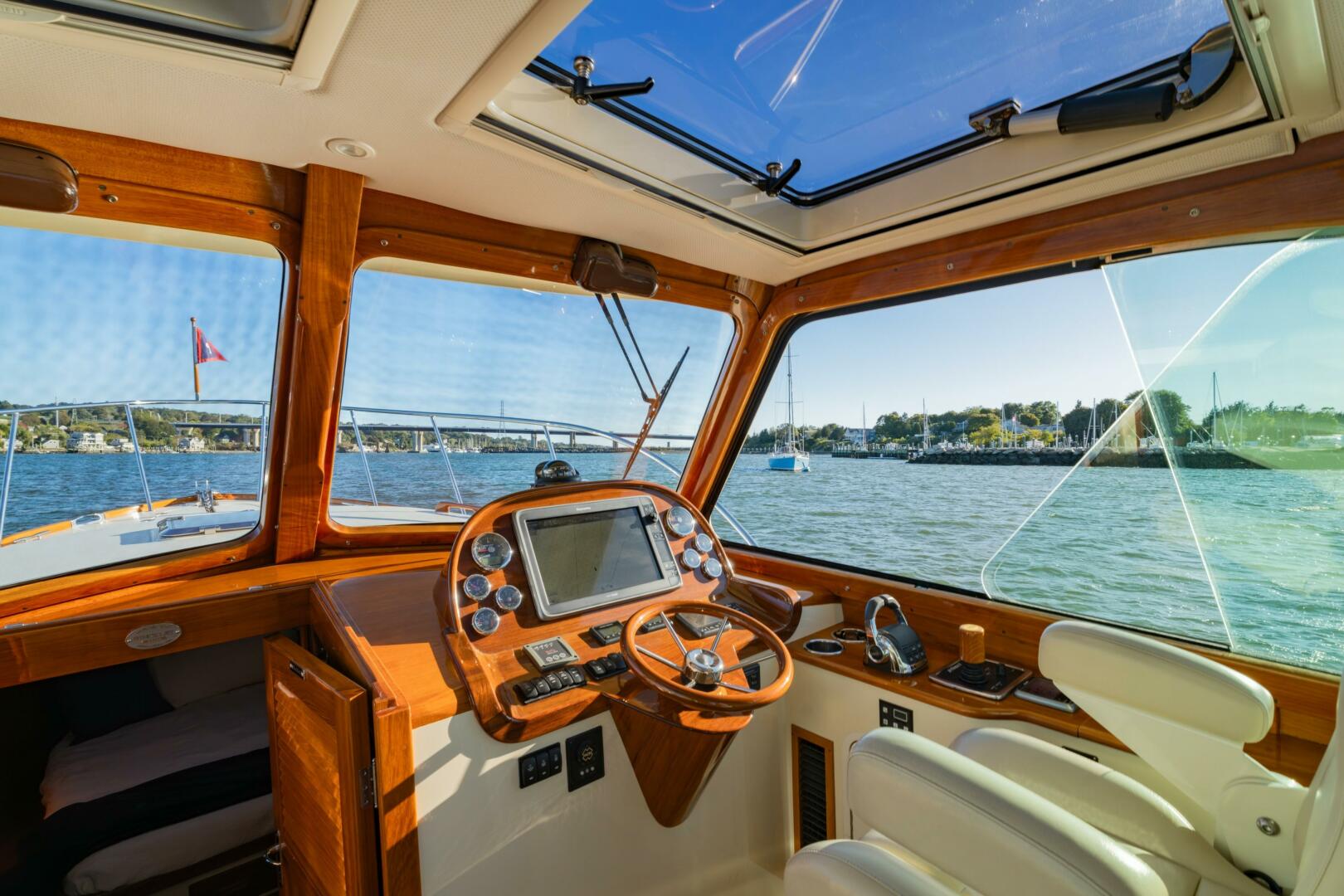

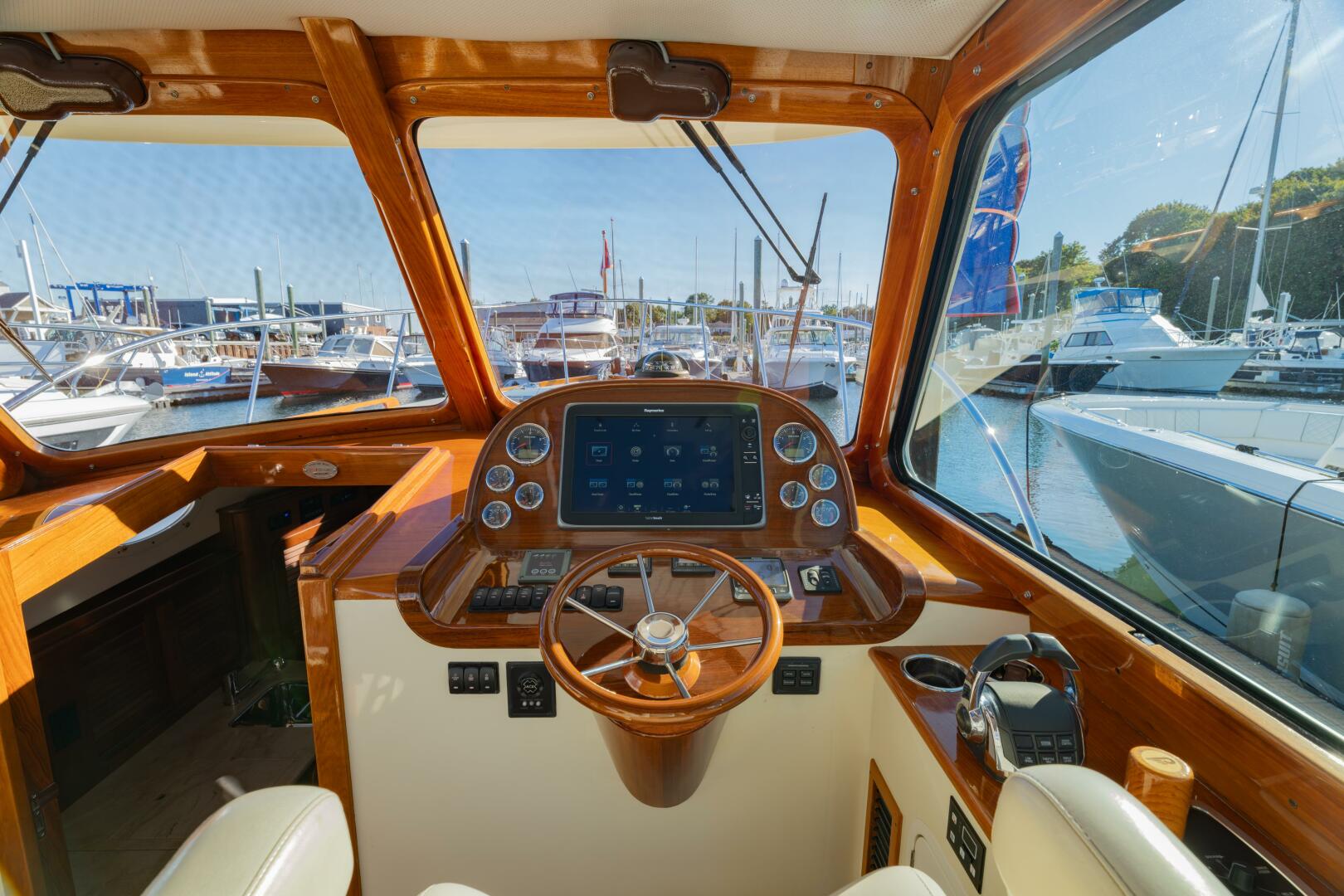

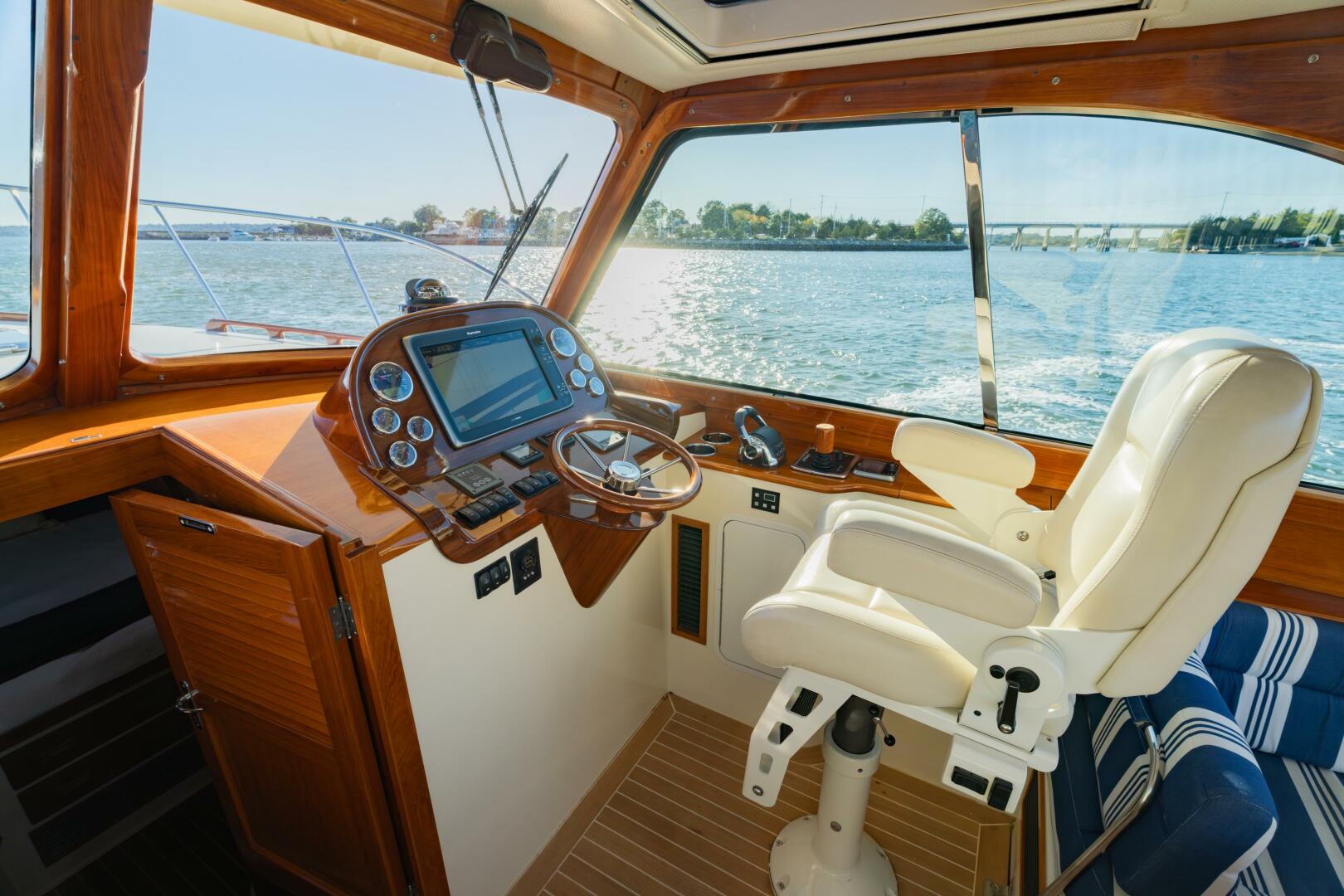

Helm Station (Starboard)

• Varnished teak instrument pod

• Stainless steel 14” steering wheel with varnished wood rim

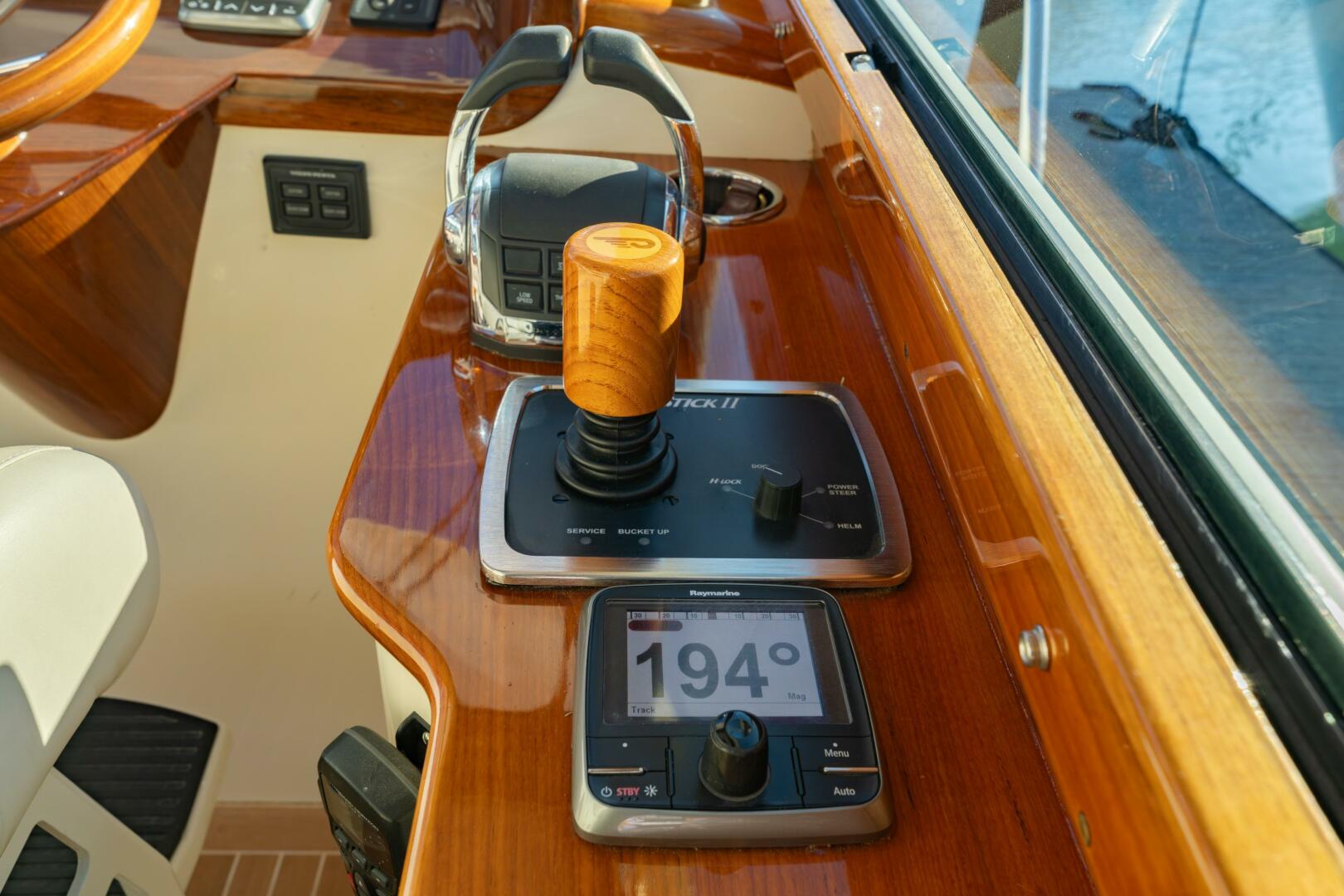

• Hinckley “JetStick II®” with H-Lock and Heading hold features

• Engine gauges, tachometer with hour meter, oil pressure, water temp., nozzle indicator

• 12-volt “cigarette style” outlet near helm

• Glove box/storage with lid at aft end of starboard shelf

• 2x Cup holders

Helm Electronics and Navigation Equipment

• Raymarine e165 16” color Chartplotter/Radar with 4kw 24” color HD scanner

• Raymarine P70R Autopilot interfaced to GPS

• i70 Multifunction instrument display with depth interfaced with Raymarine equipment

• Raymarine Ray260 AIS VHF with passive speaker

• Racor fuel filter/water audible alarm with indicators for generator and main engines

• Racor fuel filters on main engines, both wire to helm alarm panel

• High water bilge alarm with indicators for each bilge zone (3)

• ACR remote spotlight control Entertainment Electronics

• Fusion MS-AV700i DVD Stereo with hardwired MS-NRX200 helm remote

• FusionLink stereo control via Raymarine MFD

• Independent volume controls for pilothouse, cockpit, and cabin speaker pairs

• Cockpit speakers have dedicated amplifier

• All speakers for system are Alpine

• 3x Pair of speakers – 1x pair in pilothouse forward, 1x pair in cockpit, and 1xpair in cabin. All speakers have remote volume control

• Independent climate controls at port and starboard helm

• Samsung 24” smart LED TV with video input from satellite tuner

• Direct TV HDMI jack located inside the pilothouse near starboard amenity, co-located with the optional 110V outlet

• KVH TV1 Satellite TV system with DirecTV network. Satellite TV dome to be painted to match the deck and installed aft of the mast on pilothouse rooftop

• Direct TV control box located inside port locker. Includes one DirecTV Receiver and RF remote. A/V feed jack located in pilothouse, forward of starboard amenity.

Accommodations and Layout

The Queen Island Berth interior is finished in satin-varnished cherry with optional shear lockers located to port and starboard. The cabin sole is gloss varnished teak and tulipwood. This spacious cabin with 6’2” standing headroom is fully climate controlled via a single 10,000 BTU reverse-cycle air conditioning unit with outlets in the main cabin and the head. There is a TV on the aft bulkhead for viewing from the sleeping area. Entry is from the pilothouse companionway to the galley to port, private head to starboard and the island berth accommodations forward.

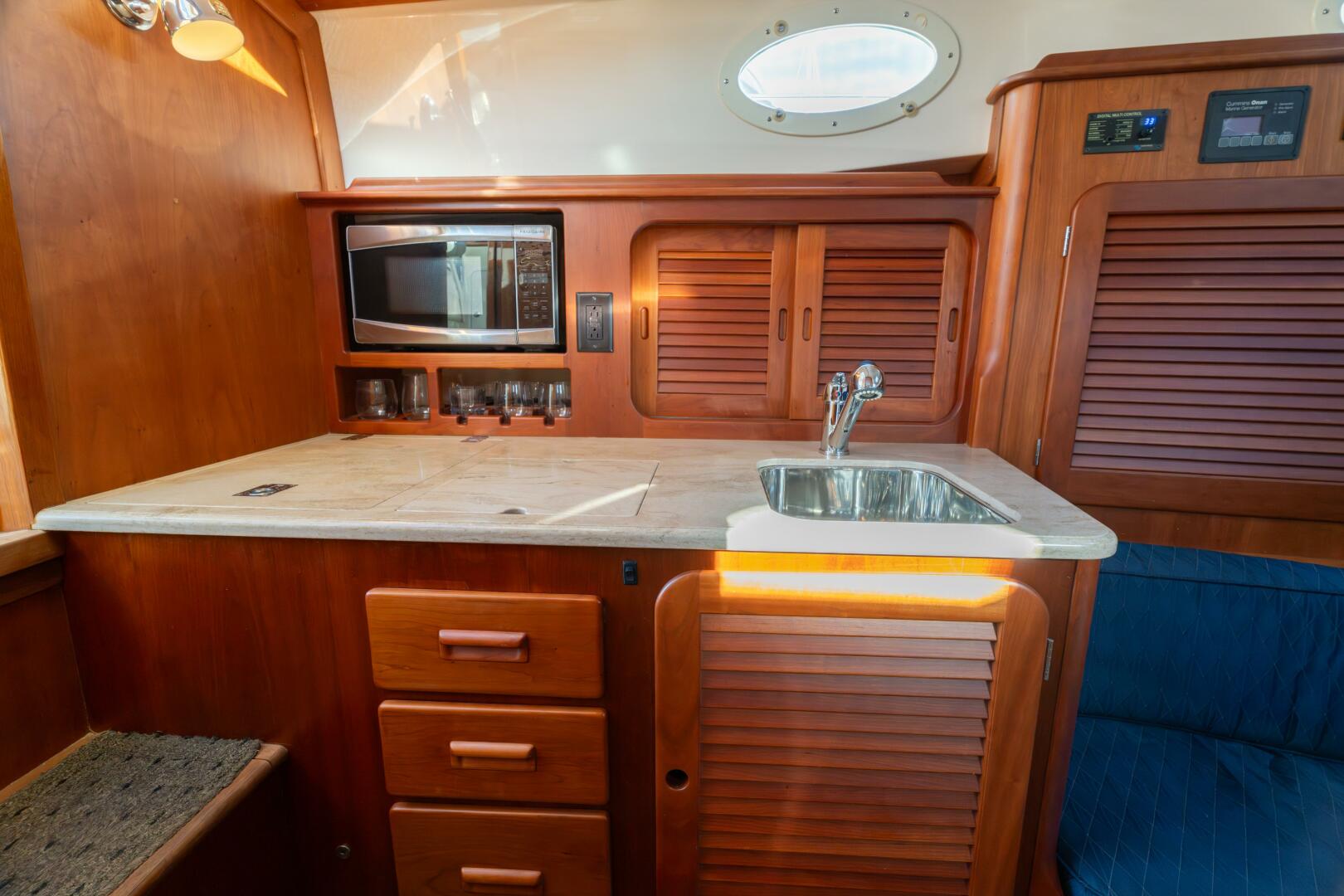

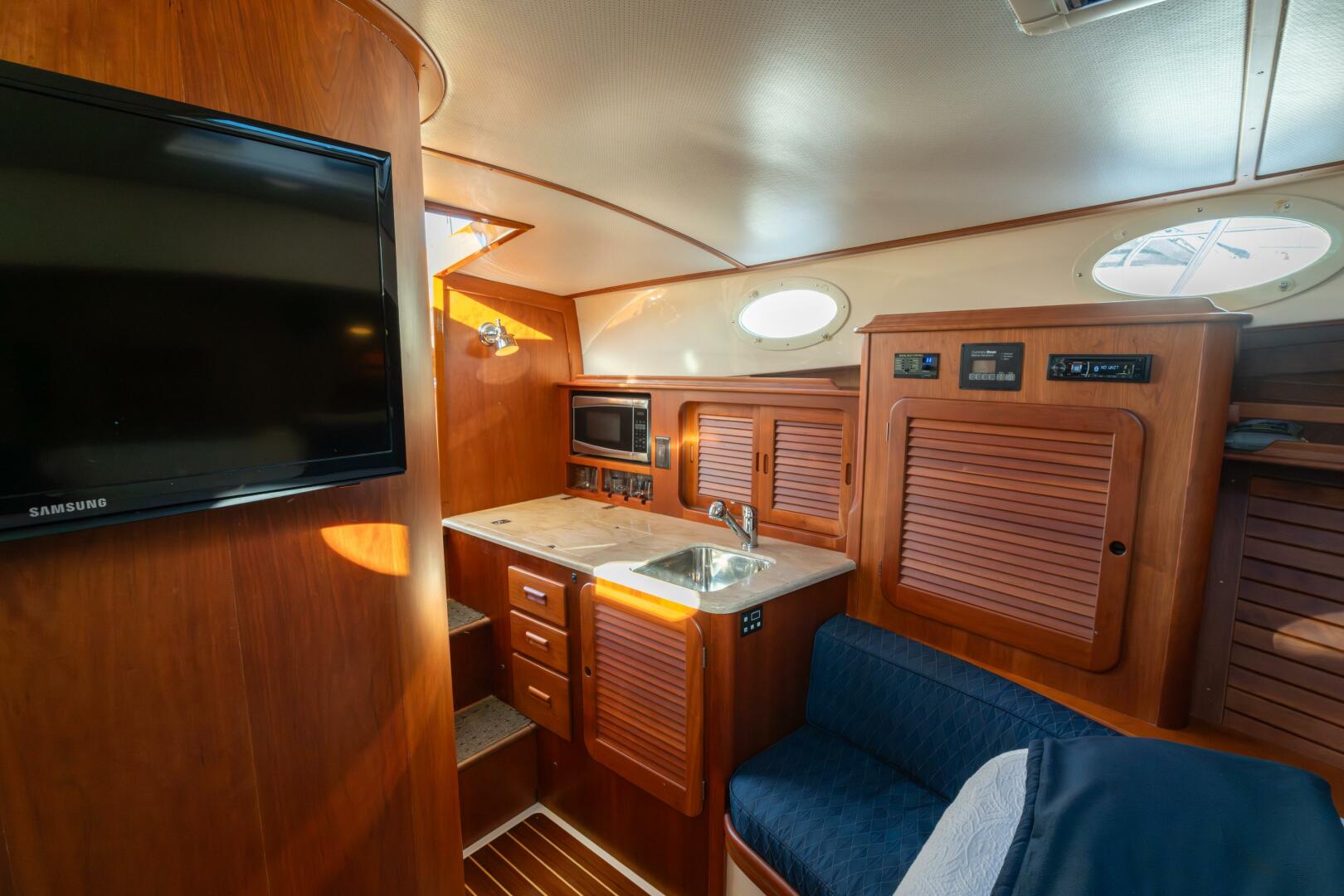

Galley

(port)

• Custom Corian countertop in galley

• Stainless steel sink with Grohe fixtures, spray nozzle and hot and cold pressure water.

• Adler Barbour refrigeration – 12-volt cold plate refrigerator in a self-draining insulated box

• 600-watt 110-volt microwave oven

• Electric cooktop on countertop

• Mug and glass storage below microwave

• 110-volt outlet

• Built-in bin for dish stowage

• 3x Cherry pullout drawers

• Red step-light in galley

• Under counter pull-out garbage receptacle

• Additional storage outboard and under the galley sink

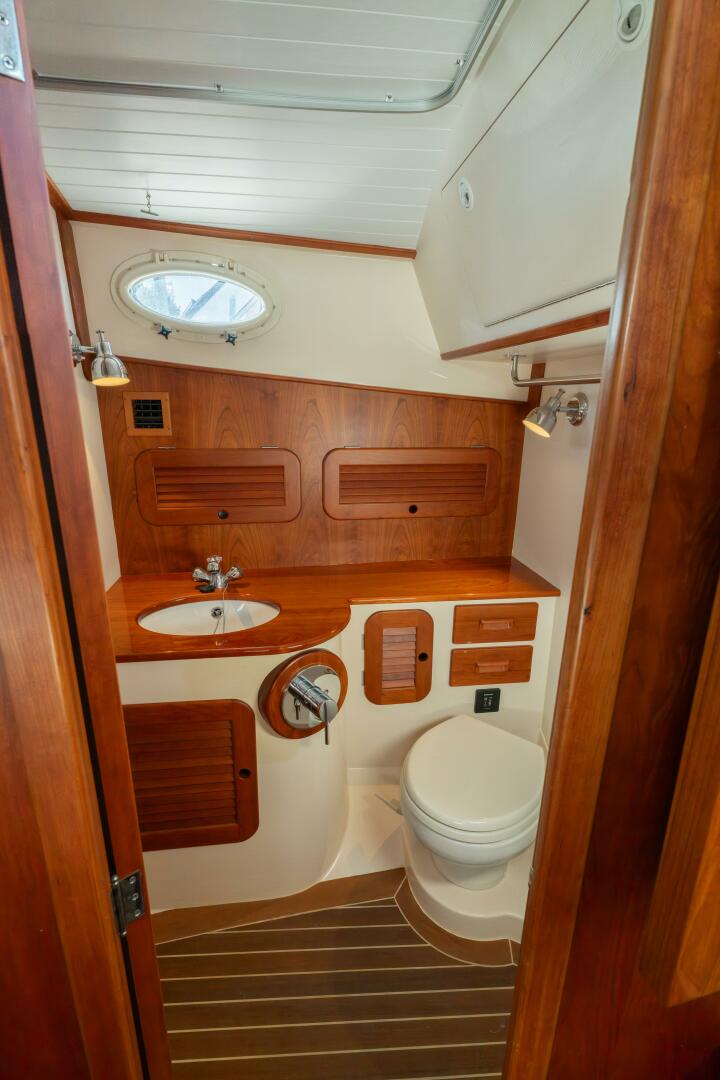

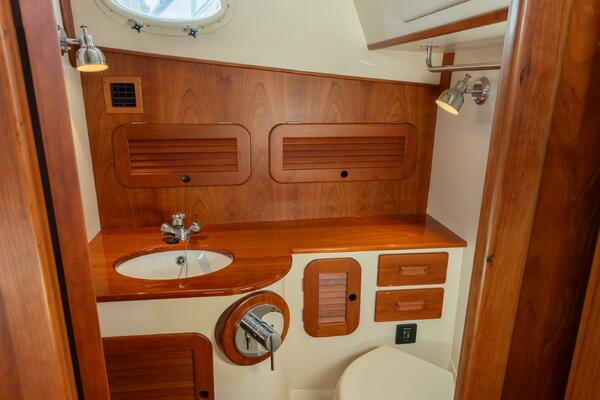

Head

(next aft starboard)

• Solid cherry door panel door

• Custom teak flooring

• Custom countertop and under-mounted porcelain sink

• High-end shower with custom mounted mixing valve provides hot & cold pressure water; Stainless mixing valve is mounted on custom satin cherry mount

• Sealand Vacu-Flush electric marine head is plumbed to a 27-gallon holding tank and overboard discharge

• Mirror on the forward bulkhead with cherry frame and an additional full length mirror

• Storage in cherry faced lockers above and outboard the vanity, a drawer with a cherry face beside the marine head, and a locker under the vanity

• 110-volt outlet

• Air conditioning/heat outlet in head

• Opening port with screen, as well as forced ventilation.

• Stainless steel towel bar

• A custom shower curtain track is in overhead for quick cleanup after showering

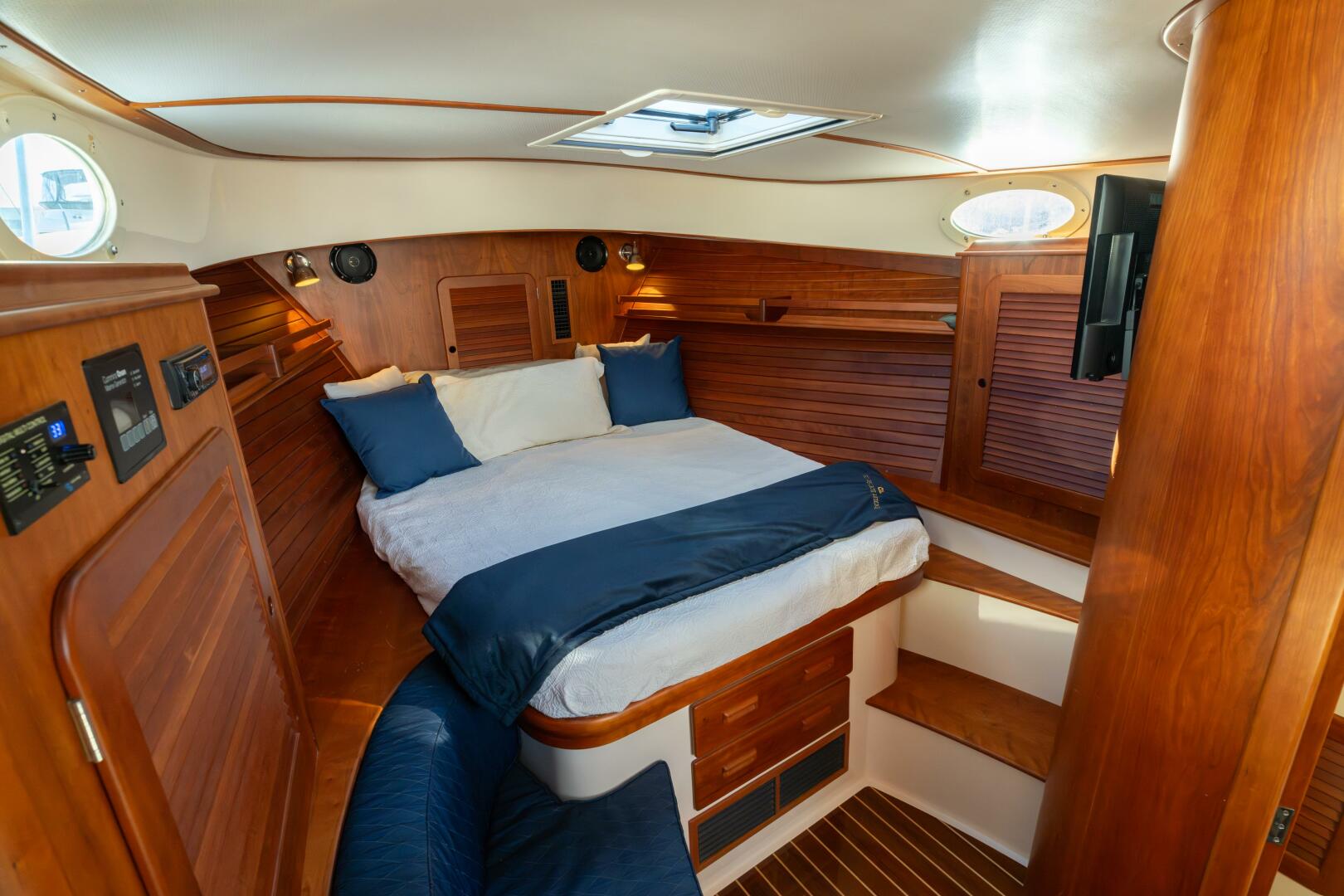

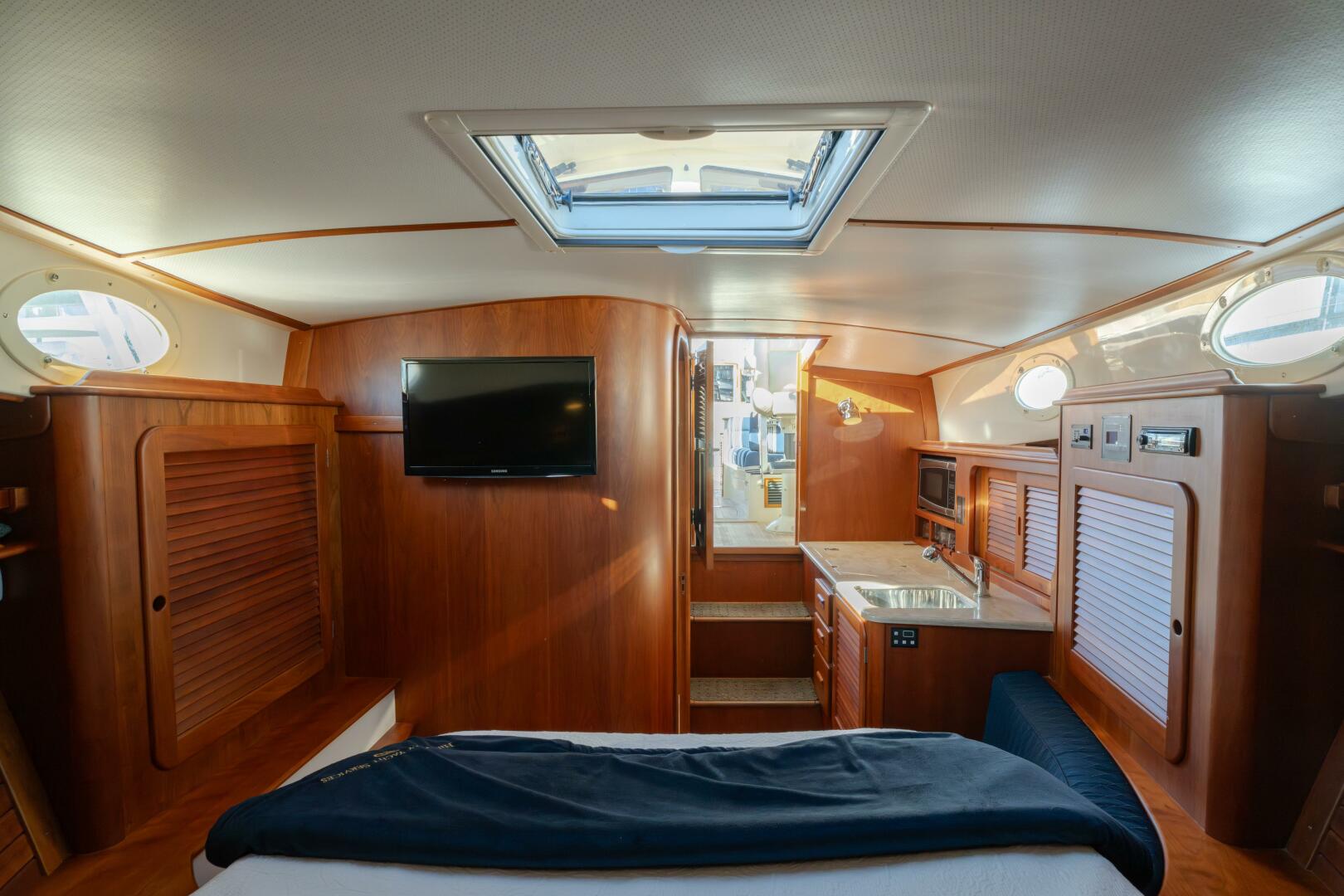

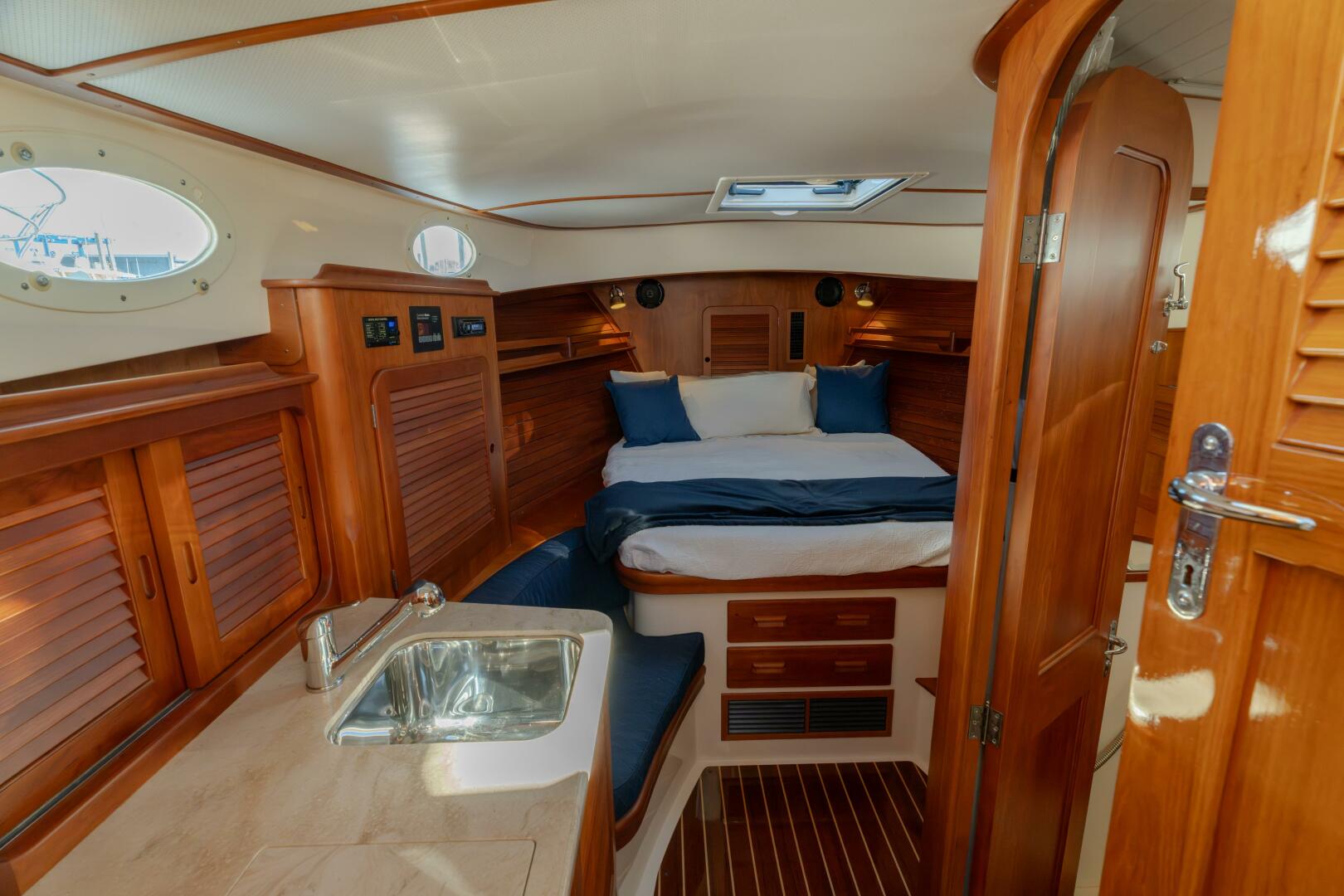

Island Queen Berth

(forward)

• Optional Island Queen berth with settee to port for easy access to the bunk

• Storage lockers under Island Queen berth have easy-access cherry front drawers

• Cedar-lined hanging locker is just aft of the berths to starboard

• Optional fore and aft shelves with removable railings under side decks to port & stbd, outboard of queen berth

• TV on aft bulkhead

• Overhead Stainless Steel opening hatch with Ocean Air Sky screen/shade

• Air conditioning/heat outlet in cabin with zone control located at galley forward face

• Mattress upholstered in Ralph Lauren Sandbar Matelasse Natural

• Cabin seat upholstered in Ralph Lauren fabric

Electrical System

Low resistance, copper wire and sacrificial zinc anode bonding system.

12-volt system:

• Start – Two 12-volt AGM Group 31 batteries

• House – Two 12-volt AGM Group 4D batteries

• Heavy-duty battery parallel switch allows emergency starting

• 2x Two 185 amp 12 Volt D.C. alternators, one for house batteries and one for each starting battery

• 12-volt distribution panel includes thermo-magnetic breakers, volt and amp meter

110-volt AC electrical system

• 110-volt shore power inlet and relay

• 2x 30 amp shore power cord. 1x dedicated to house and charging loads and 1x dedicated to climate control systems

• Victron Multiplus inverter/charger with 100-amp 12-volt multi-stage battery charging capability

• 3000 watt pure sign wave inverter with control mounted in cabin

• Optional 110 volt outlet located at port helm

Generator: Optional 9 KW Onan generator with sound shield. - 166 hours 10/25

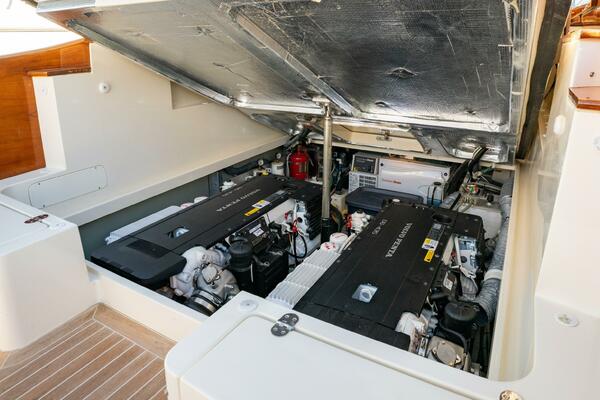

Mechanical Equipment and Engine Details

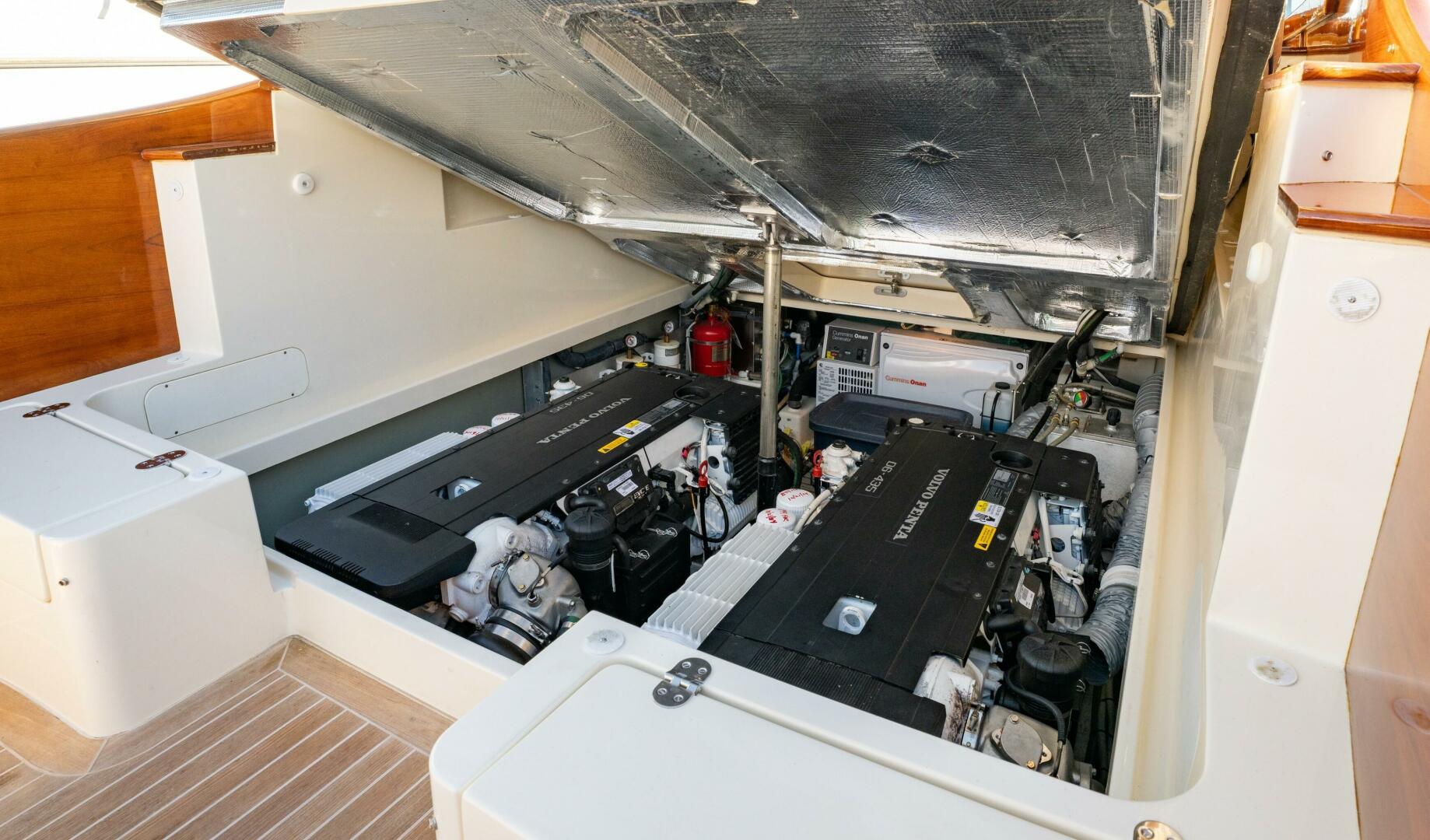

• Optional Twin Volvo D6-435-hp common rail diesel engines

• Racor filters with selector valve for main engines

• Hamilton 274 Jet Drives

• Twin ZF 63 transmissions

• 7” hydraulic variable thrust bow thruster

• Hinckley custom “Jet Stick II” control system is integrated with the bow thruster

• Dual cylinder trim tabs with indicator controls at helm

• Fuel filter/water separator with audible alarm panel at helm

• Volvo LCD multi-function display. Separate analog tachometer, oil pressure, fuel tank gauge, and engine coolant temperature for each engine

• Fuel, oil pressure, and water temperature gauges

• Alarms for high-low oil pressure, and high engine water temperature and hydraulic pressure

• Manual hydraulic steering pump

• 3x Electric 1500-GPH 12-volt bilge pumps with float switches and high water alarm

• Whale emergency bilge pump - mounted in cockpit locker

• In-line 12-volt automatic shower sump pump

• 27-gallon holding tank with overboard discharge

• 6-gallon stainless steel hot water heater – shore power and engine heated

• 40-gallon polyethylene water tank.

• 2x 110-gallon polyethylene fuel tanks - total 220-gallons

• Mylar-faced acoustical foam-lined engine box insulation

• Engine box cover has double gaskets and an electric riser

• Engine box forced-air exhaust fan

• Baffled and insulated air intake

• Automatic engine compartment fire suppression system, with automatic engine shut- down

• Optional oil change kit

Safety Equipment

• Ritchie compass mounted at helm

• Dry chemical fire extinguishers

• USCG approved flare kit

• 12-volt Kahlenberg air horn with switch on dash

• Life Jackets

• Docking lines

• LED running Lights

• Fender with Wichard snap hooks for each fender line

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.
